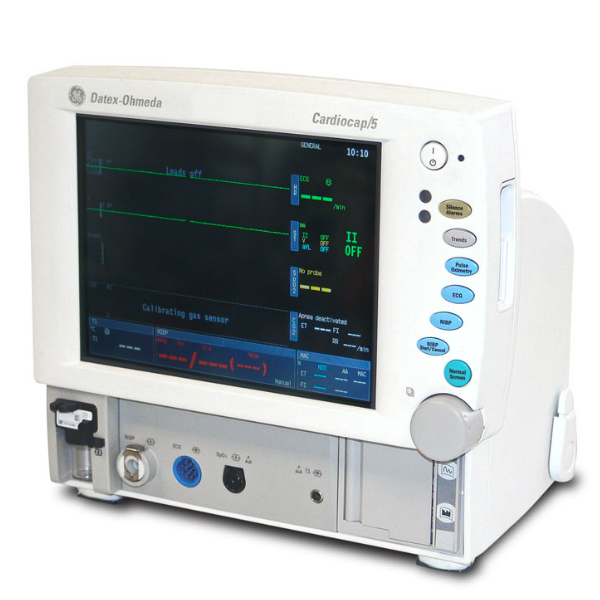

Datex Ohmeda CardioCap 5 Anesthesia Monitor by GE Healthcare – Recertified

This tag marks a new or recertified item that we offer service contracts, PMs, troubleshooting, or repairs for, through our official service partner Renew Biomedical . A Service Contract covers: Annual Preventative Maintenance, full coverage on parts and labor for repairs/maintenance, a full biomed’s report with all work, a rental unit for replacement, telephone support, complimentary unit cleaning, and free return shipping.

This tag indicates a product with normal shipping times. This product is reliably available but will be prepared for patient readiness by our biomedical technicians. Expect product delivery in 2-3 weeks.

This tag marks how many years of warranty MME provides by default with the purchase of the specific unit. Warranty covers unit malfunctions, internal/external parts, and work done by Renew Biomedical . Options for extended warranty or service contracts are also available. Warranty is void if the equipment is diagnosed, worked on, altered or repaired by any other technicians or companies unless approved beforehand by MME

Datex Ohmeda Cardiocap 5 Features

  • A colored screen with adjustable brightness, and a built-in printer for your convenience
  • An easy-to-use interface on a large screen with color-coded, prioritized alarms which allow for customizable modes for specific care situations
  • Full Vital Signs Monitoring Capabilities: Body Pressure, Blood Pressure, Pulse Rate,  Respiration Rate
  • ECG – shows up to 6 waveforms, SpO2, NiBP, 2 X-Temp, NMT, 24-hour graphical trends of all parameters, also able to show minitrends in a 5 or 30 minute window
  • An emergency backup battery with the potential to run for a quarter hour minimum in case of emergency (requires 5 hours charging time).
  • A smaller sized unit that is mobile and requires less space than most vital signs monitors.

Potential Use(s):

  • Operating Rooms
  • Ambulatory Vehicles
  • Surgery and Induction Rooms
  • PACU (Post Anesthesia Care Units)
  • Monitor is intended for use for patients over 11 lbs/ three years of age

Call For Quote

SKU: GECARDIOCAP5 Categories: ,

Datex Ohmeda Cardiocap 5 Specifications


  • Size: (W x D x H) 330 x 220 x 300 mm, (13.0 x 8.7 x 11.8 in)
  • Weight: F-MXG: < 11.2 kg, (24.8 lb), F-MX: < 10.2 kg, (22.6 lb


  • 100-240 VAC ±10%, 60/50 Hz

Back-up battery

  • 15 min minimum, charging time typically 5h

Graphical trends

  • 20 min, 1, 2, 4, 6, 8, 10, 12 and 24h

Numerical trends

  • All parameters, sampled every 5 min and after NIBP measurement


  • Adjustable high and low limit alarms


  • (optional) Thermal array, 3-channels, paper width 50 mm. Local printing PCL-5 and later compatible laser printers


  • Display size and type 10.4 inch LCD active matrix colorNumber of traces Up to 6. Display resolution 640 x 480 pixels


  • Number of channels 3
  • Number of leads 3 or 5
  • ST analysis 3 channels, continuous

Heart rate

  • Measurement range 30 to 250 beats per min (bpm)
  • Measurement accuracy ±5% or ±5 bpm, whichever is greater
  • Pacemaker pulse detection 2 to 500 mV, 0.5 to 2 ms

Impedance Respiration

  • Measurement method Measurement uses ECG electrodes to measure the impedance changes as a result of breathing. Measurement range 4 to 120 breaths/min

Pulse Oximetry (SpO2), Datex Legacy Standard

  • Plethysmographic waveform/plethysmogram
  • Measurement method Red and infrared light absorbtion SpO2
  • Measurement range
  • SpO2 40% to 100%
  • Pulse rate 30 to 250 bpm
  • Measurement accuracy, SpO2
  • (±1SD) 100% to 80%, ±2 digits
  • Below 50%, unspecified
  • Pulse rate measurement accuracy ±5% or ±5 bpm
  • Pulse Oximetry (SpO2), Datex Legacy Standard
