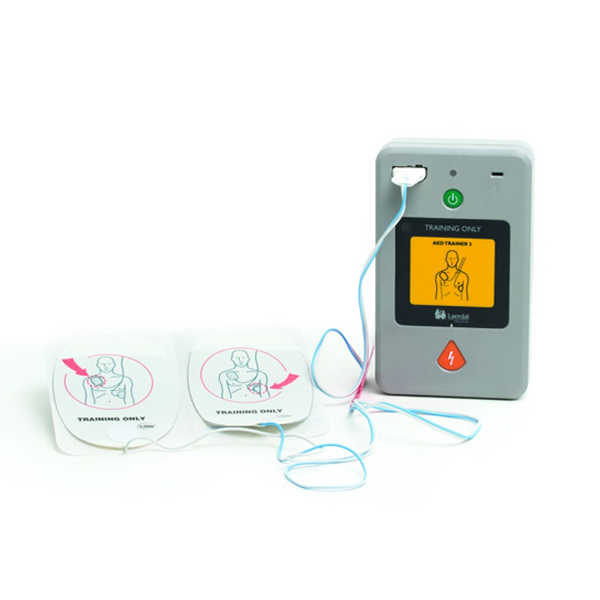

Laerdal AED Trainer 3 – Laerdal Trainer only – 198-00650


This tag denotes that the unit or item will ship for FREE anywhere in the continental United States.

This tag indicates a product with normal shipping times. This product is reliably available but will be prepared for patient readiness by our biomedical technicians. Expect product delivery in 2-3 weeks.

Preparing for Sudden Cardiac Arrest – A fast, accurate response from trained responders when treating the cardiac arrest patient is essential if successful patient outcomes are to be achieved. The AED trainer 3 is the ultimate preparation tool for trained responders facing cardiac arrest.


  • DFU
  • Quick Start Guide
  • 4 x AA Batteries
  • Infant/Child Key with tether
  • Operating System Card
  • Philips Training Pads III
  • Philips Interconnect cable
  • External Manikin Adapter

Looks and works like a Heartstart FR3
The AED Trainer 3 reflects the unique functionality of the Philips Heartstart FR3 AED, and provides a realistic training experience for emergency responders to deliver optimal therapy when facing cardiac arrest.

Flexible Configuration
The AED Trainer 3 is configured with eight real-world scenarios that have been developed in accordance with internationally recognized responder programmes. They are AHA and ERC 2010 Guideline compliant. Many parameters on each scenario can be easily configured to conform to local protocols or future Guideline updates. Language voice prompts can also be changed at a touch of a button.

Complete Instructor Control
The instructor can change scenarios by pressing the buttons on the device itself or by using an optional remote control. During each scenario, the remote control lets the instructor pause, change or introduce new challenges, to test how students respond to a variety of situations, enhancing the learning experience.

Obtain AED Feedback with Laerdal LINK Technology
Laerdal LINK Technology integrates with AED training solutions to detect pad placement and inactivity (hands off) time. Events are sent to the SimPad PLUS with SkillReporter timeline for effective real-time feedback and debriefing.

Below you will find the most important Technical Specifications for the AED Trainer 3. Most of the specifications you will also find in the Directions for Use (DfU).

Operating System:
OnData Card – 1 GB SD.
Data card also contains configuration software (multi language) required to change device parameters.
Localisation and software updates available from Laerdal download site.


  • Type: 4 x AA Alkaline (any brand)
  • Capacity: >10 hours


  • Materials Prop 65 compliant
  • Housing: Acrylonitrile butadiene styrene (ABS)
  • Control buttons: Silicone
  • Foot: Polyurethane (PU)
  • Infant/Child key: Polycarbonate and polybutylene terephthalate (PC + PBT)
  • Tether: Silicone

EMC Classification
The product is in compliance with the essential requirements of Directive 2004/108/EC on electromagnetic compatibility through compliance with:

  • IEC 61000-6-3 Electromagnetic Compatibility (EMC) – Part 6-3:
  • IEC 61000-6-1 Electromagnetic Compatibility (EMC) – Part 6-1:

(See DFU for additional electromagnetic conformity information)

Regulatory Approvals
CE mark, FCC Statement (US), CSA Certification (Canada), C Tick (N25270) (Australia)

Environmental Controls

  • Storage temperature: 0º – 40º C (32º – 104º F)
  • Operating temperature: 10º – 35º C (50º – 95º F)
  • Relative humidity: 0 – 90% non-condensing

Remote Control

  • Size: 96 mm x 54 mm x 6 mm (3.8” x 2.1” x 0.2”)
  • Battery Type: Lithium CR2025 3V
Weight 1.3 lbs
Dimensions 3 × 6 × 9 in
