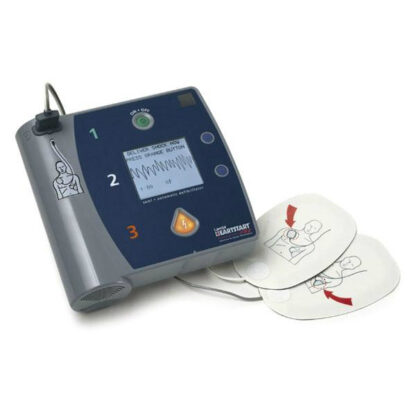

Philips HeartStart FR2+ AED – Recertified

Philips Heartstart FR2 Features

General

Physical

• Size: 2.6” high x 8.6” wide x 8.6” deep (6.6 cm x 21.8 cm x 21.8 cm)
• Weight: ~4.7 lbs (2.1 kg)

Waveform

• Biphasic truncated exponential.
• Waveform parameters are automatically adjusted as a function of patient defibrillation impedance.
• The FR2 delivers shocks to load impedances from 5 to 180 ohms.

Charge Control

• Controlled by patient analysis system for automated operation.
• Can be programmed for manual initiation using advanced mode.

Charge Time

• From shock advised < 10 seconds typical, including confirming analysis.
• Charge time increases near end of battery service life.

Shock-to-Shock Cycle Time

• < 20 seconds typical, including analysis, in AED mode.

Charge Complete Indicator

• Shock button flashes, audio tone sounds

Shock Delivery Vector

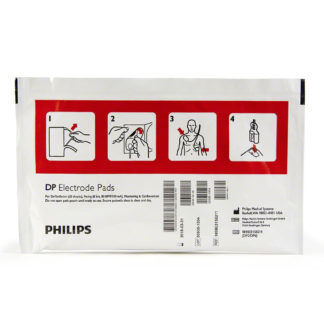

• Via adult defibrillation pads placed in the anterior-anterior (lead II) position or via pediatric attenuated defibrillation pads placed in the anterior-posterior position.

ECG Analysis System

Function

• Evaluates impedance of defibrillation pads for proper contact with patient skin, and evaluates the ECG rhythm and signal quality to determine if a shock is appropriate.

Pace Maker Detection

• In advanced mode, on detection of pacemaker, provides screen display of Pace maker Detected alert.
• Pacemaker artifact is removed from the signal for rhythm analysis.

Screen Type

• High-resolution liquid crystal display with backlight

Screen Dimensions

• 2.8” wide x 2.3” high (70 mm x 58 mm)

Frequency Response

• Nondiagnostic rhythm monitor 1 Hz to 20 Hz (-3 dB), nominal

Sensitivity

• 1.16 cm/mV, nominal

Controls and Indicators

• LCD screen: high-resolution, backlighted LCD screen displays ECG and text messages

Controls

• on/off button, shock button, options buttons

LED Indicators

• connectors socket LED, flashes to indicate socket location. LED is covered when defibrillation pad connector is properly inserted. Shock button LED flashes when defibrillator is armed. Audio speaker: provides prompts. Volume is adjustable via Setup screen.

Beeper

• Chirps when self-test has failed. Provides various warning beeps during normal use

Indicator

• status indicator LCD displays device readiness for use. Low battery detection: automatic during daily periodic self-testing.

Low Battery Indicator

• Solid or flashing re X status indicator on front panel; screen display Low Battery or Replace Battery warning, as appropriate

Battery

• Type: 12 VDC, 4.2 Ah, lithium manganese dioxide. Capacity: when new, a minimum of 300 shocks or 12 hours operating time at 77° F (25°C)
