Cardiovit AT-101 ECG System – Schiller

expect delays This tag appears on products that are experiencing a severe backorder from the manufacturer due to supply chain or other issues. Wait times usually in excess of 3+ weeks. MME can still accept and process your order, but be aware that it will not ship for an extended period of time. If you order something with an extended lead time, we will contact you with updates regarding your order.

Call For Quote

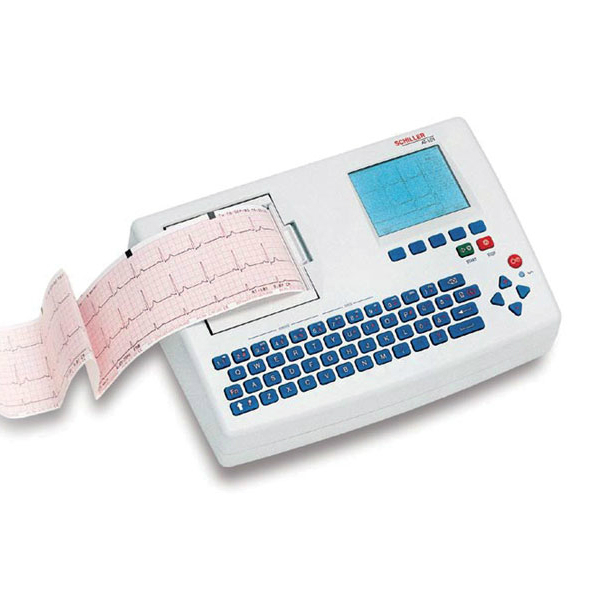

The Schiller AT-101 ECG System is a portable and battery powered, microprocessor-based automatic electrocardiograph.


What's Included:

  • 10-Lead Patient Cable
  • 10 Snap Clip Electrode Adapters
  • 500 Disposable Electrodes
  • 1 Pack of Paper
  • Power Cable
  • Operating Manual
If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.

The Schiller AT-101 ECG System is a portable and battery powered, microprocessor based automatic electrocardiograph with full features such as:

• 12 lead /10-leadwire simultaneous acquisition with programmable lead configuration

•  Powerful and yet easy-to-use, advanced ECG technology, multiple ways to send (RS-232, LAN and Modem) and to store ECG data with built-in memory

•  With the AT-101 you can export ECG-Data to a third party EMR, HIS, and PACS systems via XML.

• Built-in 3.5″ Thermal Printer or Full Page (8.5″ x 11″) print via External Printer option Includes all startup accessories, ECG Operators manuals and 3 Year Limited Warranty from Schiller ECG America.

The Schiller Cardiovit AT-101 ECG includes:

  • 10-Lead Patient Cable.
  • 10 Snap Clip Electrode Adapters.
  • 500 Disposable Electrodes.
  • 1 Pack of Paper.
  • Power Cable.
  • Operating Manual.

Warranty: 1 Year.

The Schiller Cardiovit AT-101 ECG is a high tech, affordable 3-channel ECG Unit. It is compact and easy-to-use. This affordable unit features intuitive, easy-to-learn controls and an internal thermal printer which prints in real-time and requires no ink.

 ECG Features:

  • Graphical LC display.
  • Memory stores up to 40 records.
  • Integrated 3-channel monitor.
  • Alphanumeric keyboard.
  • Direct keys for the most important functions.
  • Integrated high-resolution thermal printer, subsequent printout on thermoreactive paper possible.
  • Interface for external printer for A4 printouts on regular paper.
  • Interface for data-transmission.
  • Intuitive and easy operation by means of direct function keys.
  • User-programmable printing formats for the internal printer.

ECG Specifications:

  • Dimensions: 11.4″ x 7.8″ x 3″ (290 mm x 198 mm x 76 mm).
  • Weight: 5.7 lb (2.6 kg).
  • Built-In Monitor: 76 mm x 57 mm effective display area, 320 x 240 dots resolution.
  • On-Screen Status Indicators: Battery status, date, time, power source.
  • Control Panel and Keyboard: User-friendly, alphanumeric keyboard, LED indicator and LC display.
  • Power Supply Requirements: 220 – 240 V (nominal), 50/60 Hz; 110 – 115 V (nominal), 50/60 Hz; stand-alone operation with built-in rechargeable battery; LED indicator for mains operation, integrated power supply unit.
  • Battery Capacity: 4 hours of normal use.
  • Power Consumption: Max. 28 VA.
  • Line Frequency Filter: Distortion-free suppression of superimposed 50 or 60 Hz sinusoidal interfaces by means of adaptive digital filtering (Schiller Powerline Filter SPF).
  • Frequency Range of Digital Recording System: 0 – 150 Hz (IEC/AHA).
  • Chart Paper: Thermo-reactive, Z-folded, 80 mm wide.
  • Printer: High-resolution thermal head printer, 8 dots/mm (amplitude axis), 40 dots/mm (time axis) @ 25 mm/s.
  • Interfaces: RS-232 interface; data transmission to PC (SEMA-200) and external modem connection (memory option necessary); parallel port for external printer; optional Ethernet interface and optional internal modem for XML data transmission (memory option necessary).
  • Memory: Possibility to save up to 40 Resting ECG measurements (Option).
  • Environmental Conditions:
    • Operating Temperature: 10° – 40°C.
    • Storage Temperature: -10° – 50°C.
    • Relative Humidity: 25 – 95% non-condensing.
    • Pressure During Operation: 700 – 1060 hPa.

Master Medical Equipment is happy to help with any questions that you may have. Have a question about servicing this device? Call ReNew Biomedical at 866-525-1618 and see what service options are available to you.


Master Medical Equipment is committed to providing as many accessory options for your units as possible. A full list of our online accessory listings for this unit can be found here. If you are unable to find the exact accessory you are looking for, please call one of our customer service representatives for information on the missing product or our recommended alternative.
Weight 12 lbs
Dimensions 12 × 12 × 12 in
