EasyOne Pro LAB Pulmonary Function System 3100-1 – ndd – New

SKU: NDD3100-1
expect delays This tag appears on products that are experiencing a severe backorder from the manufacturer due to supply chain or other issues. Wait times usually in excess of 3+ weeks. MME can still accept and process your order, but be aware that it will not ship for an extended period of time. If you order something with an extended lead time, we will contact you with updates regarding your order.

Call For Quote

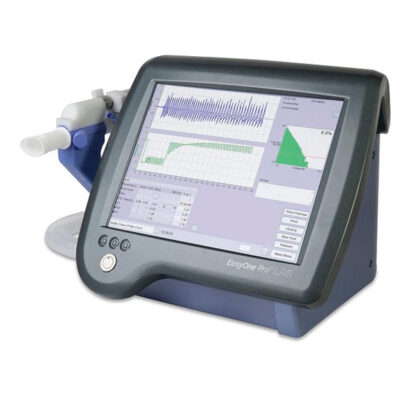

The ndd EasyOne Pro LAB is the first lung function instrument to allow Single Breath DLCO measurement outside of the lung function laboratory.

The EasyOne Pro LAB offers all the benefits of the EasyOne Pro plus multiple-breath nitrogen washout to obtain complete lung volumes, FRC (Functional Residual Capacity) and LCI (Lung Clearance Index) measurements. As well as multiple-breath N2 washout, some of the other many features of the EasyOne Pro LAB include:

  • Single Breath CO diffusion (DLCO)
  • Spirometry
  • Automatic calibration
  • Flexible EMR capabilities
  • No warm-up time
  • No expensive service contracts
  • High-resolution color touch screen

Materials Included

  • All Inclusive Multiple Breath Nitrogen Washout System for measurement of FRC and LCI with DLCO Valve
  • Flow Sensor
  • Gas Supply Tube
  • One-Way Valve
  • Pressure Tube (2)
  • Temperature/Humidity Sensor and Touch Stylus
  • 2 year warranty
  • Portable cart
  • Color Inkjet printer
  • 2 Boxes of 50 spirettes
  • 2 Boxes of 50 barriettes
  • 2 Boxes of 40 FRC barriettes
  • 1 year extended warranty (3 years total)

ndd EasyOne Pro LAB Product Brochure

If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.

Full Pulmonary Function Testing System

The ndd EasyOne Pro LAB Pulmonary Function System offers complete lung function testing. This machine performs Spirometry, Single Breath CO Diffusion (DLCO), and a multiple-breath washout. The EasyOne Pro is the first pulmonary function tool to allow single-breath diffusing capacity (DLCO) measurement outside of a complicated lung function laboratory. The ndd EasyOne Pro® Respiratory Analyzer completely eliminates the need for manual calibrations and maintenance.

This unit simplifies testing by providing both flow and molar mass gas signals.   An inner tube draws the sample for CO measurement and adjusts for temperature and humidity for fast, clean and highly accurate CO analysis. Full spirometry testing includes measurements for Forced Vital Capacity (FVC), Flow Volume Loop pre-post (FVL), Slow Vital Capacity (SVC) and Maximum Voluntary Ventilation (MVV). The Respiratory Analysis System uses ndd patented state of the art TrueFlow™ technology to measure all spirometry parameters.


This ndd EasyOne Pro LAB Pulmonary Function System is available in two options: the Standard System (3100-00) or All Inclusive System (3100-10).

The robust EasyOne Pro® LAB Standard System (3100-00) has a small footprint, and is highly portable with a carrying handle on the main unit. It includes the main unit and the following items:

  • one DLCO valve
  • one flow sensor
  • one gas supply tube
  • one one-way valve
  • one DLCO pressure tube
  • one FRC pressure tube
  • one temperature/humidity sensor
  • one touch stylus.

The EasyOne Pro® LAB All Inclusive System (3100-10) includes all parts of the standard system with the following additional items:

  • one small (E) cylinder of DLCO gas
  • one (E) DLCO regulator
  • one portable cart
  • one portable color inkjet printer
  • one box of 50 spirettes™
  • one box of 50 barriettes™
  • one box of 40 FRC barriettes™

We are a Certified ndd Speciality Dealer.  For current Promotional Pricing and Finance options on the ndd EasyOne LAB Spirometry System, call us Toll Free 1-866-468-9558.

This unit is on our GSA/FSS Schedule V797D-30168, call and ask for our Government Sales Team to get the GSA Price!  Also call about Trade-in value on your old Pulmonary Function Test, such as the Sensormedics Viasys VMAX Series, which is no longer supported by Carefusion.



Master Medical Equipment is committed to providing as many accessory options for your units as possible. A full list of our online accessory listings for this unit can be found here. If you are unable to find the exact accessory you are looking for, please call one of our customer service representatives for information on the missing product or our recommended alternative.

  • Noseclips Box of 25 – ndd

    Add to cart
  • DLCO Barriette Box of 50 – ndd

    Add to cart
  • NDD Medical Technologies 35mm Standard PFT Filter – 2091-222

    Read more

Weight 15 lbs
Dimensions 24 × 18 × 12 in
