Bracket Pro Serie 92-FL4 for Sapphire Infusion Pumps – Technimount
SAFETY & FLEXIBILITY WHERE IT MATTERS MOST

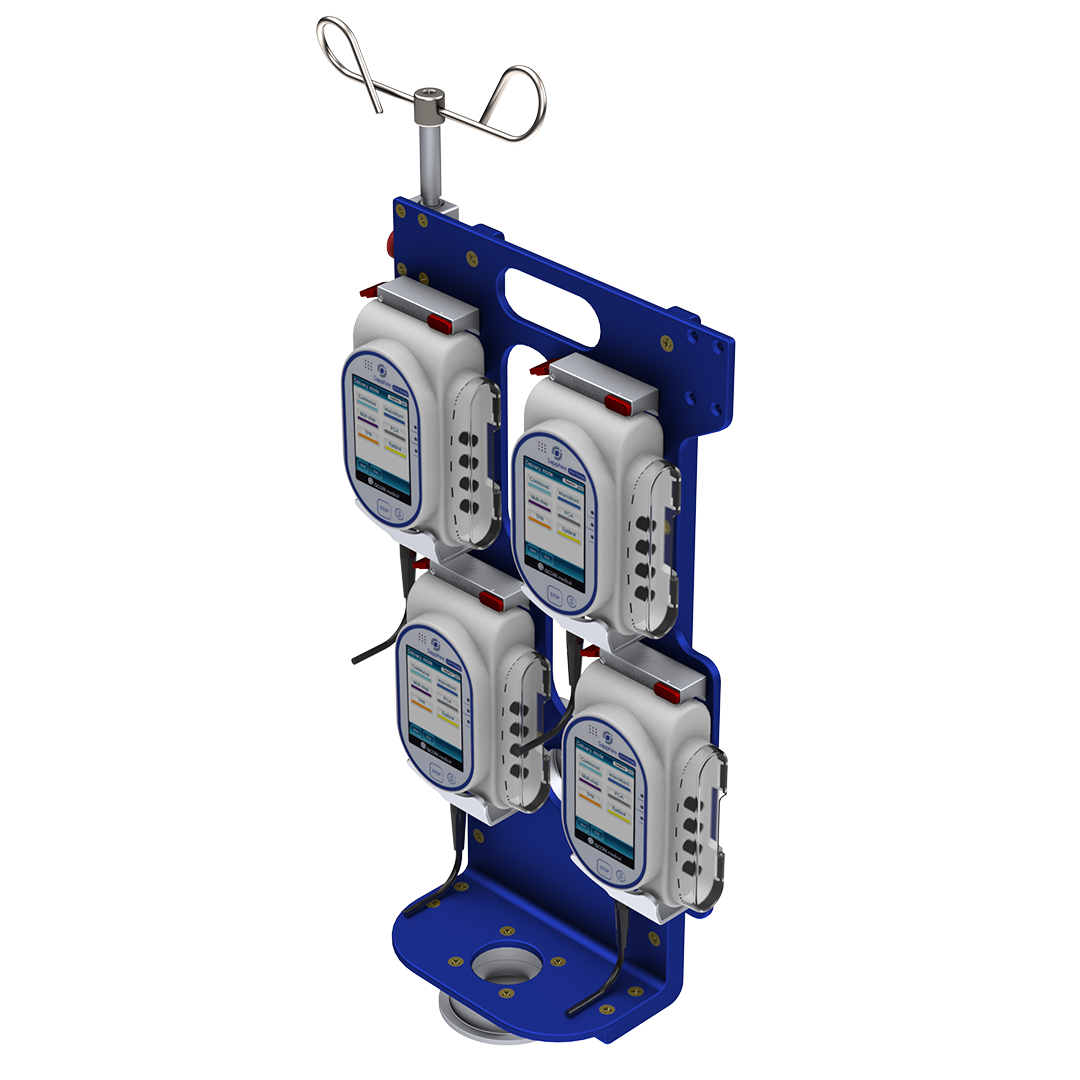

The Bracket Pro Serie® 92 – FL4 is designed for Air and Ground EMS and Critical Care Transport of up to 4 Sapphire™ Multi-Therapy Infusion Pumps.
Highly flexible, Bracket Pro Serie® 92 – FL4 easily installs and transfers between stretchers/cots, counters and walls in aircraft and ground ambulances.
Want to learn more about this product? read the long description below.
$2,995.00
This is currently not a stocked item, however it can be shipped in as little as 4 weeks. Continue checking out below, or call to place an order: 866-468-9558.
Description
FEATURES
- Medical device retained on main assembly with individual locking mechanism on each pump holder.
- Red quick release mechanism to instantly remove the pump from its holder.
- Anti-rotation micro disc and bottom micro disc to support multiple mounting configurations on stretchers/cots, surfaces and wall systems.
- IV Pole with quick release mechanism for use during air transport.
- Designed to comply with SAE J3043 and FAA, 14 CFR § 23 (applicable sections).
BENEFITS
- No interference with the medical device components, cables and tubing.
- Access to medical device from multiple angles when installed on the Xtension Pro Assistant – LP and Safety MD-Transporter.
- Quickly install the IV Pole during air transport and store directly on the bracket when not in use.
- Easily install and remove the medical device from the bracket to follow the patient during care.
- Reduces risks of damage to the equipment and ensures the safety of patients and crew during EMS and critical care transport.
TECHNICAL SPECIFICATIONS
- Features
- Installation of up to 4 infusion pumps
- Anti-rotation micro disc (rear mount)
- Micro disc (bottom mount)
- Quick release mechanisms
- IV pole approved for air transport
- Operating Environment EMS/CCT (Air)
- Compliance Tested in compliance with FAA and AMD-028, 14 CFR § 23 & 27 (applicable sections)
- Compatible Mounting System
- Safety MD-Transporter® (rear mount)
- Wall Mount System (rear mount)
- Micro Base (bottom and rear mount)
- Wall Mount Pro – WR
- Dimensions (W X D X H) 13.63 in. X 6.52 in. X 6.18 in. (33.02 cm X 15.24 cm X 15.24 cm)
- Weight 11.15 lbs (5.07 kg)
- Composition
- Bracket: aluminum 6061-T6 with blue anodized finish
- Anti-rotation micro disc and micro disc: aluminum 6061-T6 with silver anodized finish
- IV pole: stainless steel
- Safe Working Load (SWL) 13.45 lbs (6.1 kg)
- Operating Temperature – 31° F to 113° F (- 35° C to 45° C)
- Installation
- Quick release mechanisms are used to easily install and remove the infusion pump(s) from the mounting system
- Infusion pump(s) retained in mounting system by locking mechanism(s)
- Model & Configuration Options
- 2300-10-MTP-FL3: 3-pump mounting system for air transport
- 2300-10-MTP-GR3: 3-pump mounting system for ground transport
- Contact Customer Service at customerservice@technimount.com
More Info
| Dimensions | 6.52 × 13.63 × 6.18 in |
|---|
