Versatile and precise simulation.
Test Lungs
IMT Analytics test lungs are a simple and cost-efficient solution to safely verify ventilators and anesthetic devices for functionality and precision.
Precision
Multifunctional test lung, suitable for high and low flows and frequencies. The ideal solution for simulating a broad range of situations in a training.
Versatile
The SmartLung simulates an unexpected leakage or tests the precision of a ventilator for neonates. All settings according to IEC 60601-2-12, IEC 60601-2-13 and EN 794-3 are covered.
Adaptable
Adjustable compliance, resistance and leakage allow the IMT Analytics test lungs to adapt easily to a variety of medicinal requirements.
Safe
It is the ideal tool for quickly validating your anesthesia devices and ventilators.
Choose between the SmartLung 2000 2L, SmartLung Adult 1L, or SmartLung Infant 0.5L options.

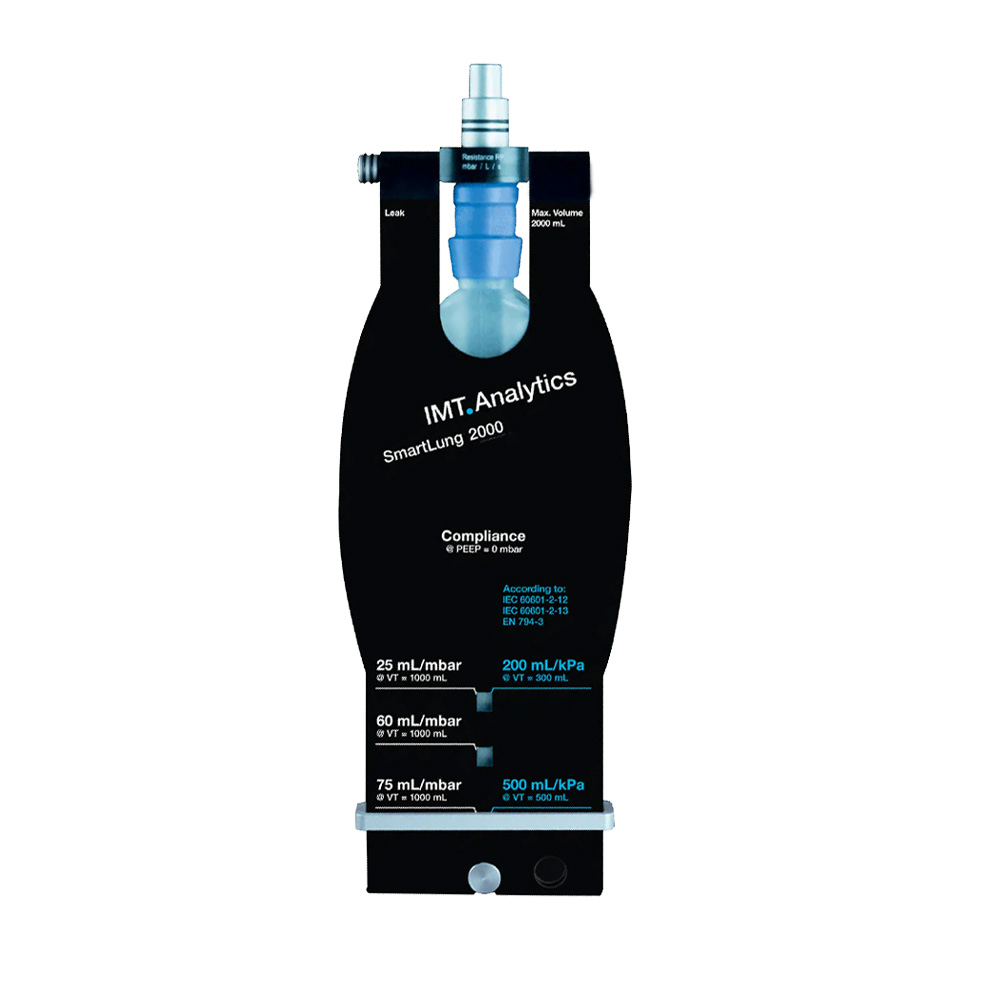

SmartLung 2000
With the SmartLung 2000, you can test ventilator compliance according to the following standards: IEC 60601-2-13 and EN 794-3
- Outstanding features for patient simulations in ventilator training and testing
- Silicone bag, 2000 mL
- Applicable volume from 0 to 1000 mL
- Compliance: 25, 60, 75 mL/mbar
- Resistance: 5, 20, 50, 200 mbar/L/s
- Adjustable leakage

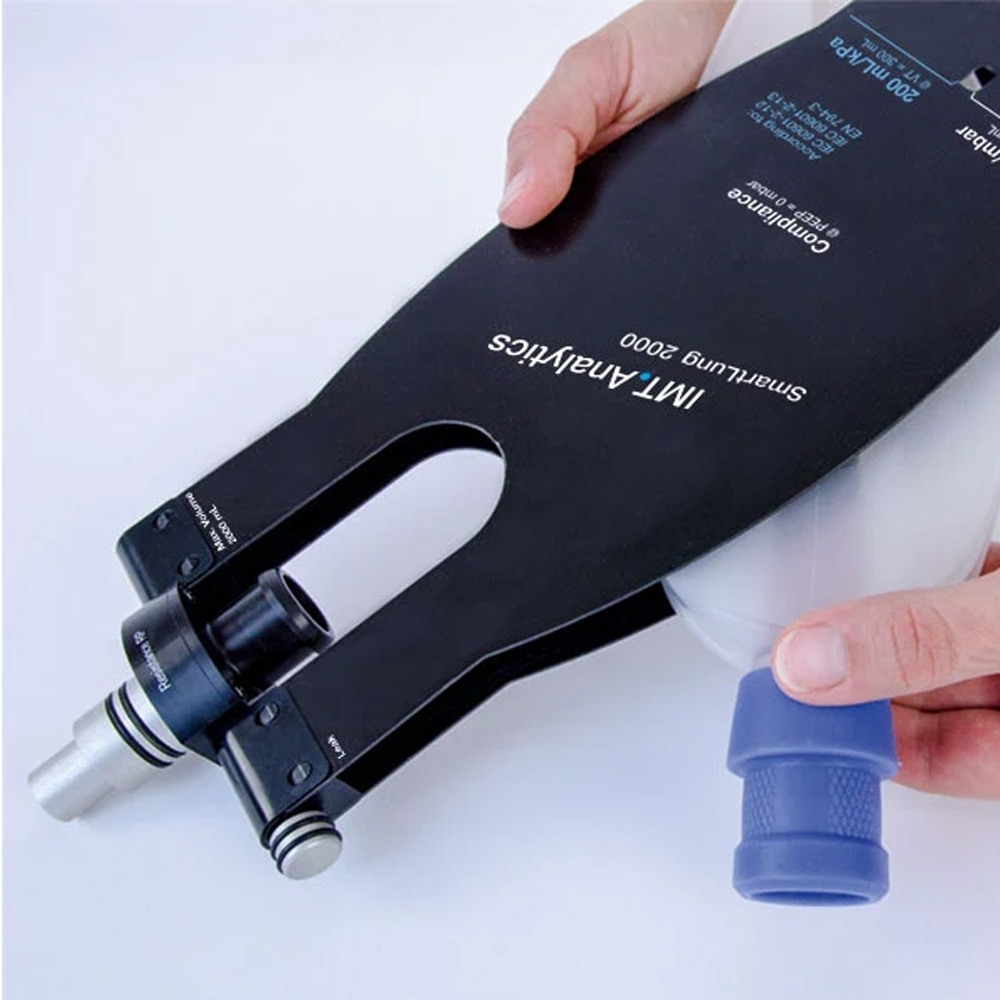

SmartLung 2000 Features
Smart and Effective
The SmartLung 2000, with its excellent portability, is the most cost-effective way to realistically simulate adult lungs, according to IEC 60601-2-13 and EN 794-3. It can simulate a wide range of scenarios with up to 1000 mL tidal volumes, providing an effective and efficient solution for patient simulations in ventilator training and testing.The SmartLung 2000 is not just brilliant; it is also built to last. Crafted from premium materials, it ensures durability, reliability, and easy part replacement for lifelong use.You can rely on the SmartLung 2000 for consistent and accurate results.
Adjustable

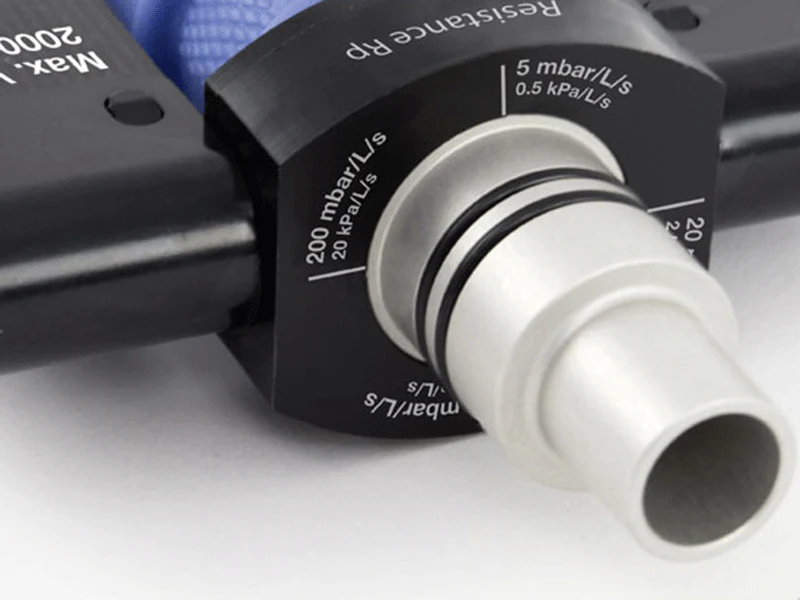

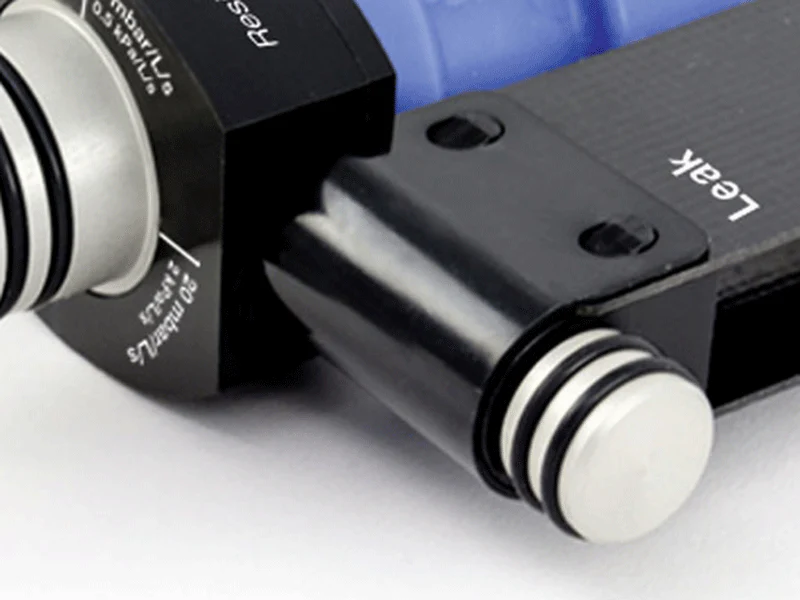

The SmartLung 2000 is an excellent tool for testing ventilators and anesthesia devices. It is an ideal addition to our flow and pressure measurement devices, the FlowAnalyser and CITREX range.The SmartLung 2000 is designed for flexibility and adaptability. By adjusting the slider, you can simulate various levels of compliance, and twisting the connector allows you to simulate different airway resistances. You can control the leakage by turning the leak knob located at the side of the SmartLung, giving you complete control over your testing conditions.

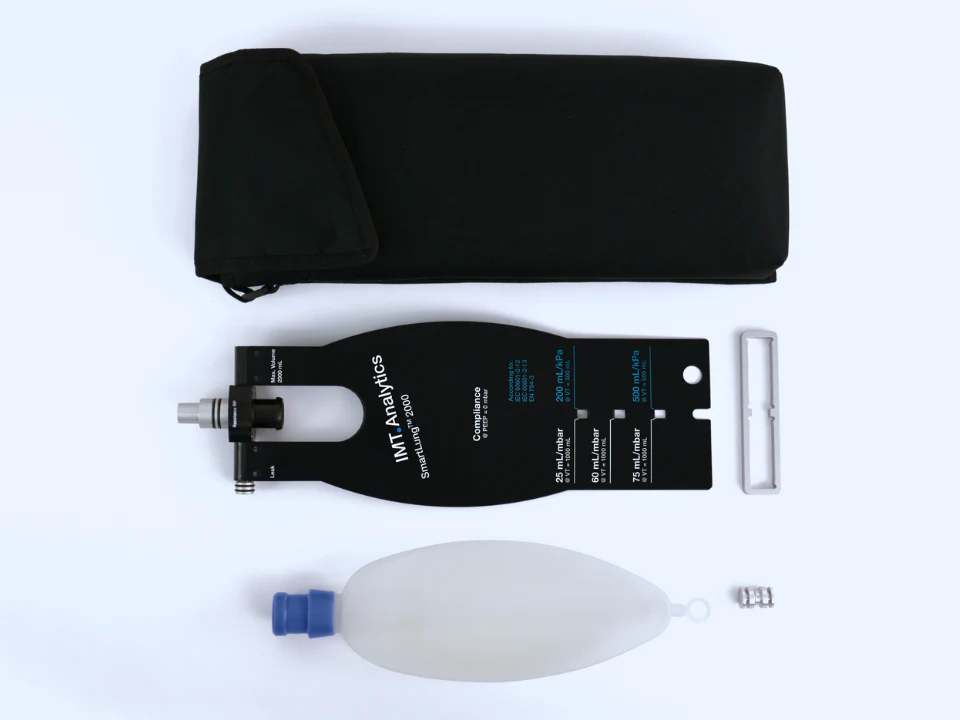

Scope of delivery
- SmartLung 2000
- User manual
- High-quality carrying bag
IMT Analytics test lungs are a simple and cost-efficient solution for safely verifying ventilators and anesthesia devices for functionality and precision.

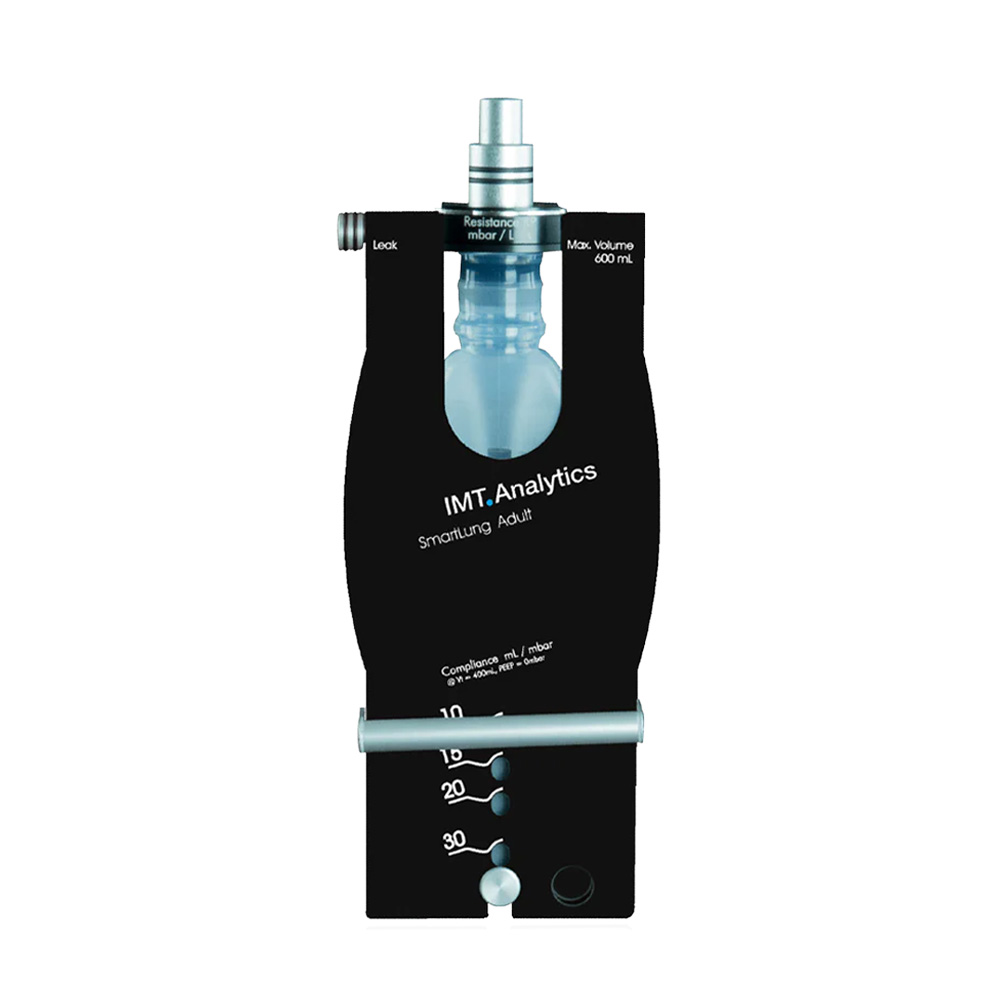

SmartLung Adult
With the SmartLung Adult, you can test ventilator compliance according to the following standards: IEC 60601-2-13 and EN 794-3
- Outstanding features for patient simulations in ventilator training and testing
- Silicone bag, 1000 mL
- Applicable volume from 0 to 600 mL
- Compliance: 10, 15, 20, 30 mL/mbar
- Resistance: 5, 20, 50, 200 mbar/L/s
- Adjustable Leakage
SmartLung Adult Features
Smart and Compact
The SmartLung Adult is our compact test lung solution for adults. With its excellent portability, it is the most cost-effective way to realistically simulate adult lungs according to IEC 60601-2-13 and EN 794-3.It can simulate a wide range of scenarios with up to 1000 mL tidal volumes.Crafted from premium materials, the SmartLung 2000 ensures durability, reliability, and easy part replacement for lifelong use.
Adjustable

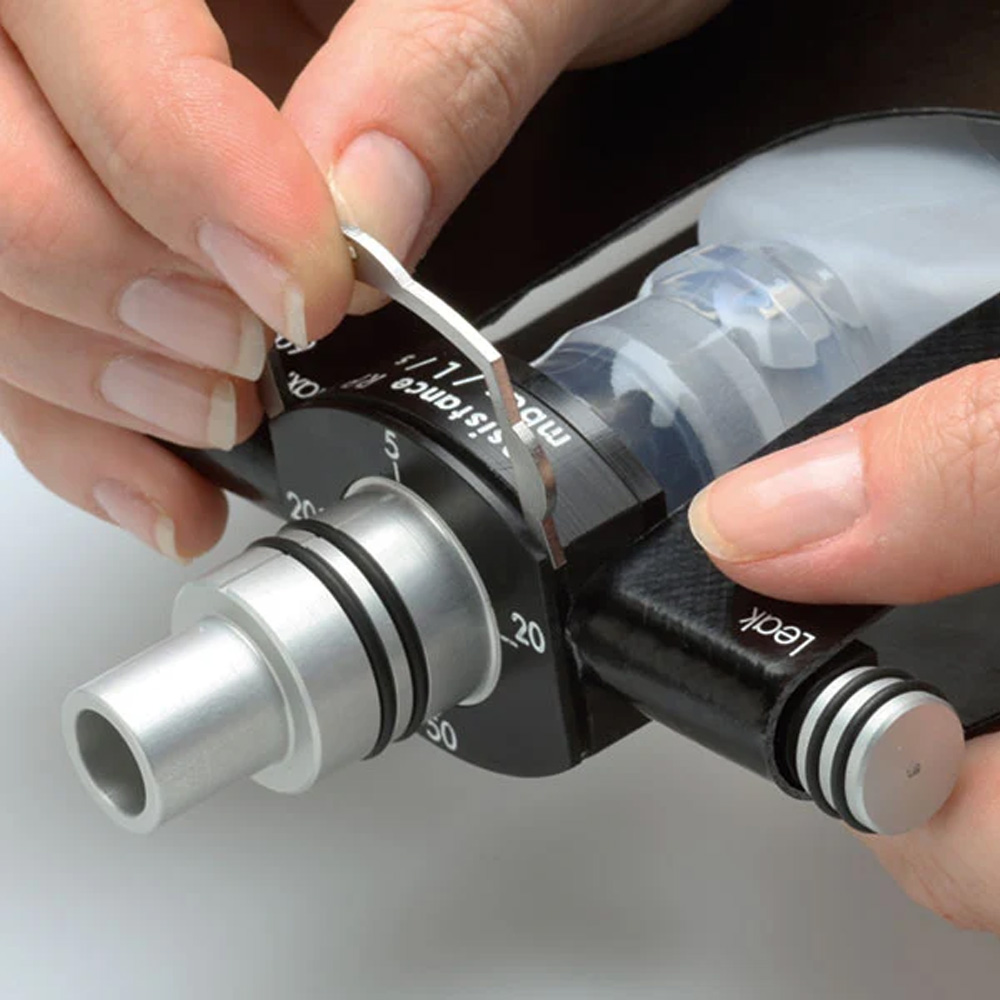

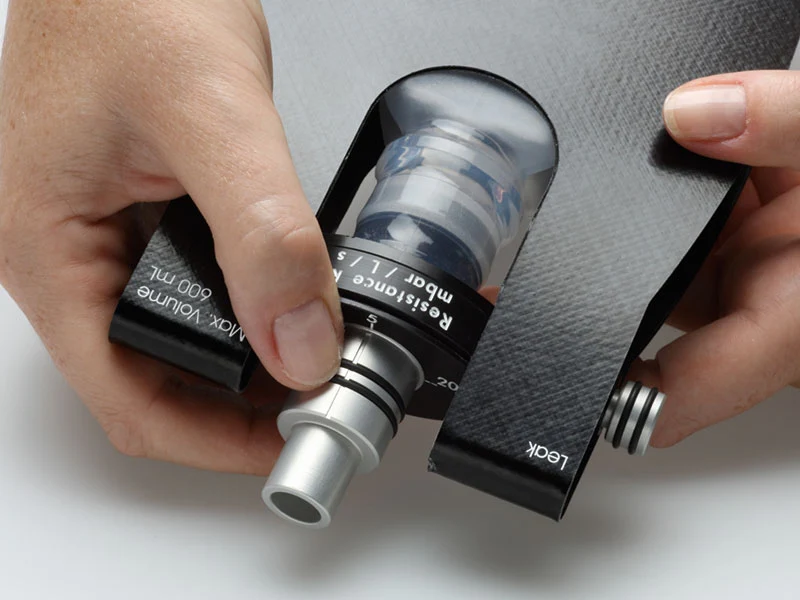

The SmartLung 2000 is an excellent tool for testing ventilators and anesthesia devices. It is an ideal addition to our flow and pressure measurement devices, the FlowAnalyser and CITREX range.By adjusting the slider, the test lung can simulate various levels of compliance, and twisting the connector allows you to simulate different airway resistances. You can control the leakage by turning the leak knob located at the side of the SmartLung.
Key features
- Adjustable resistance from 5 to 200 mbar/L/s
- Adjustable compliance from 10 to 30 mL/mbar @ 400 mL
- Outstanding performance for patient simulation in ventilator training
- 1000 mL bag (applicable volume from 0 to 600 mL)

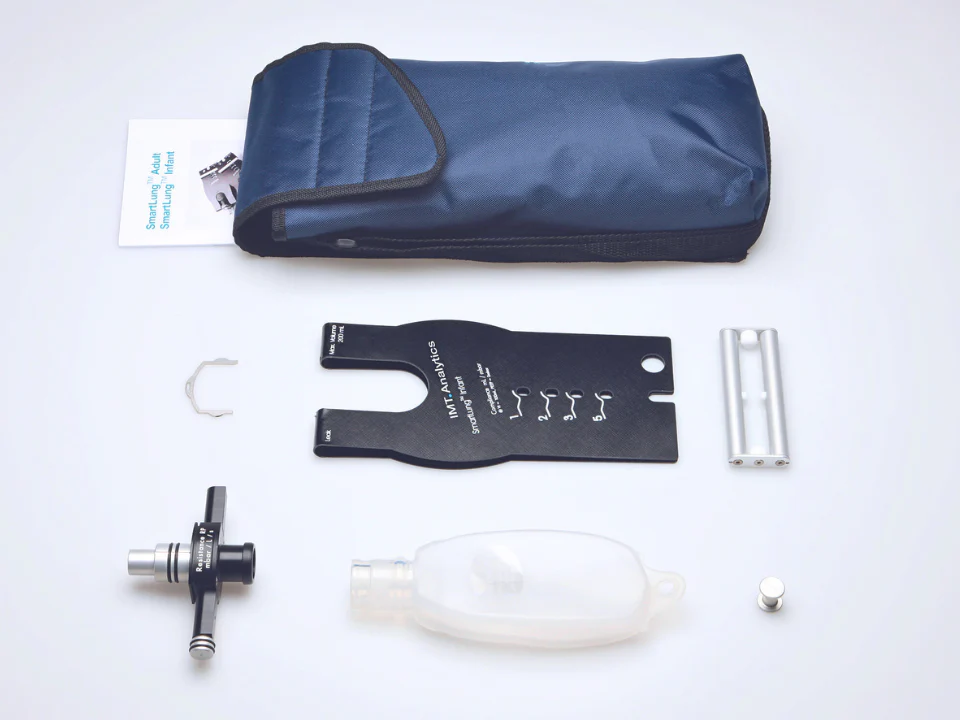

Scope of delivery:
- SmartLung Adult
- User manual
- High-quality carrying bag
IMT Analytics test lungs are a simple and cost-efficient solution for safely verifying ventilators and anesthesia devices for functionality and precision.

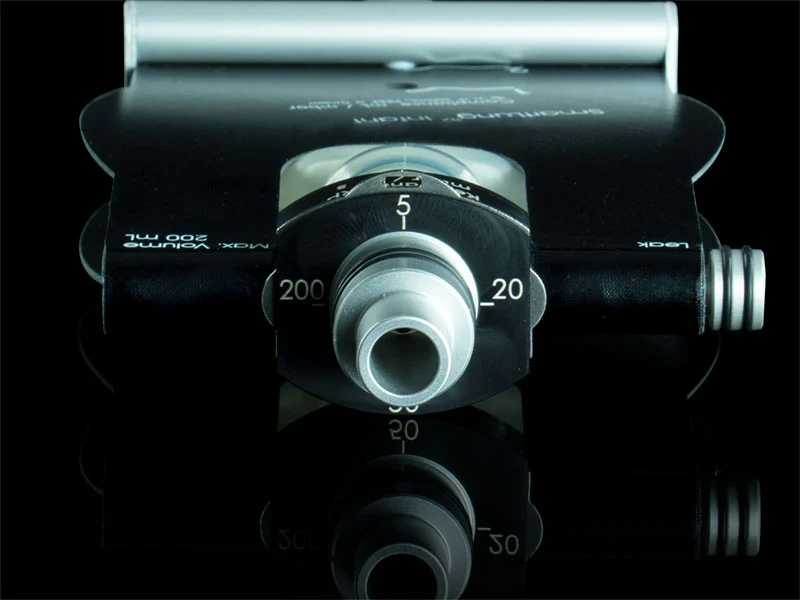

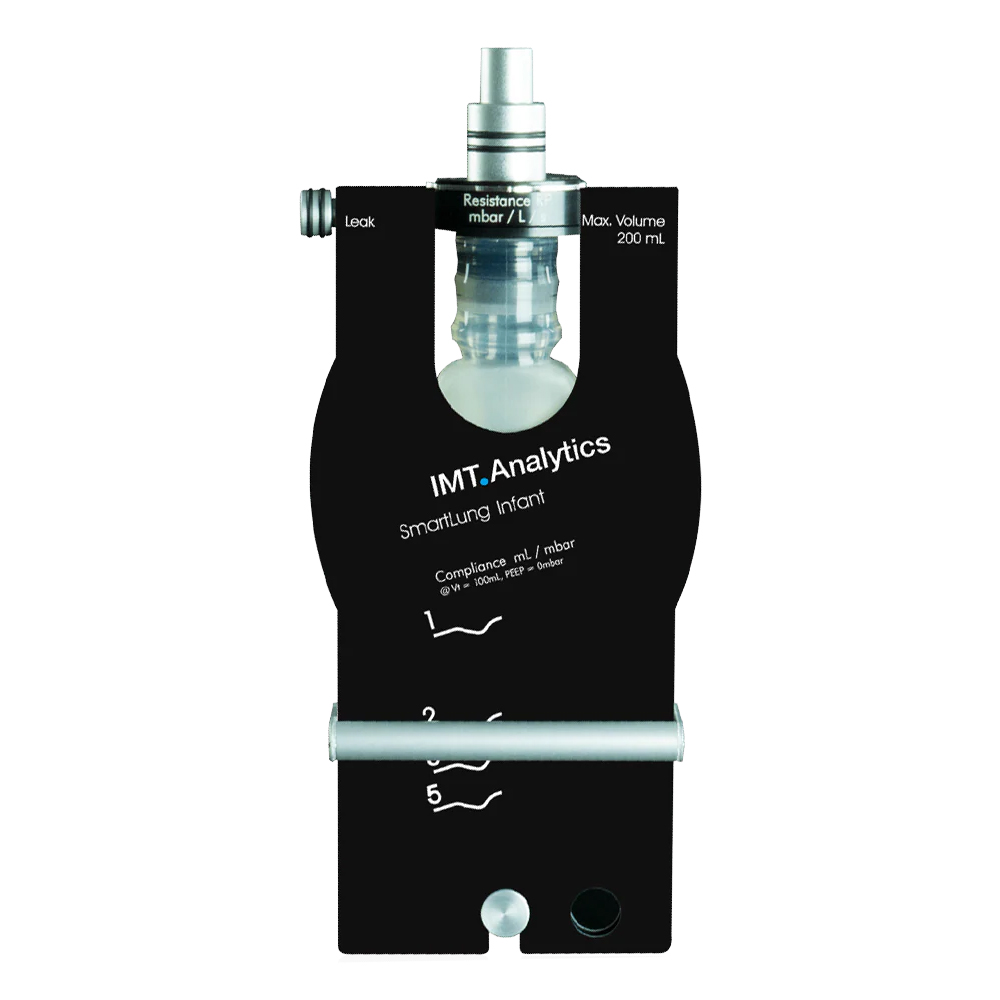

SmartLung Infant
The SmartLung Infant simulates the lungs of young children, offering the same performance as our other SmartLung products.
- Outstanding features for patient simulations in ventilator training and testing
- Silicone bag, 500-mL
- Applicable volume from 0 to 200 mL
- Compliance: 1, 2, 3, 4, 5 mL/mbar
- Resistance: 5, 20, 50, 200 mbar/L/s
- Adjustable leakage
SmartLung Infant Features

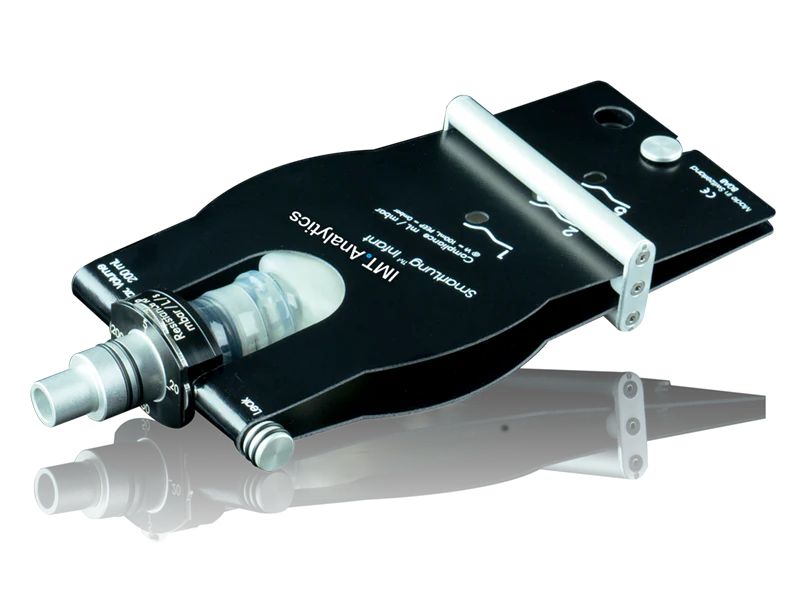

SmartLung Infant — The perfect simulation of infant lungs
With its excellent portability, the SmartLung Infant is the most cost-effective way to realistically simulate infant and pediatric lungs, according to IEC 60601-2-13 and EN 794-3. It can simulate a wide range of scenarios with up to 200 mL tidal volume.Crafted from premium materials, the SmartLung Infant ensures durability, reliability, and easy part replacement for lifelong use.
Adjustable

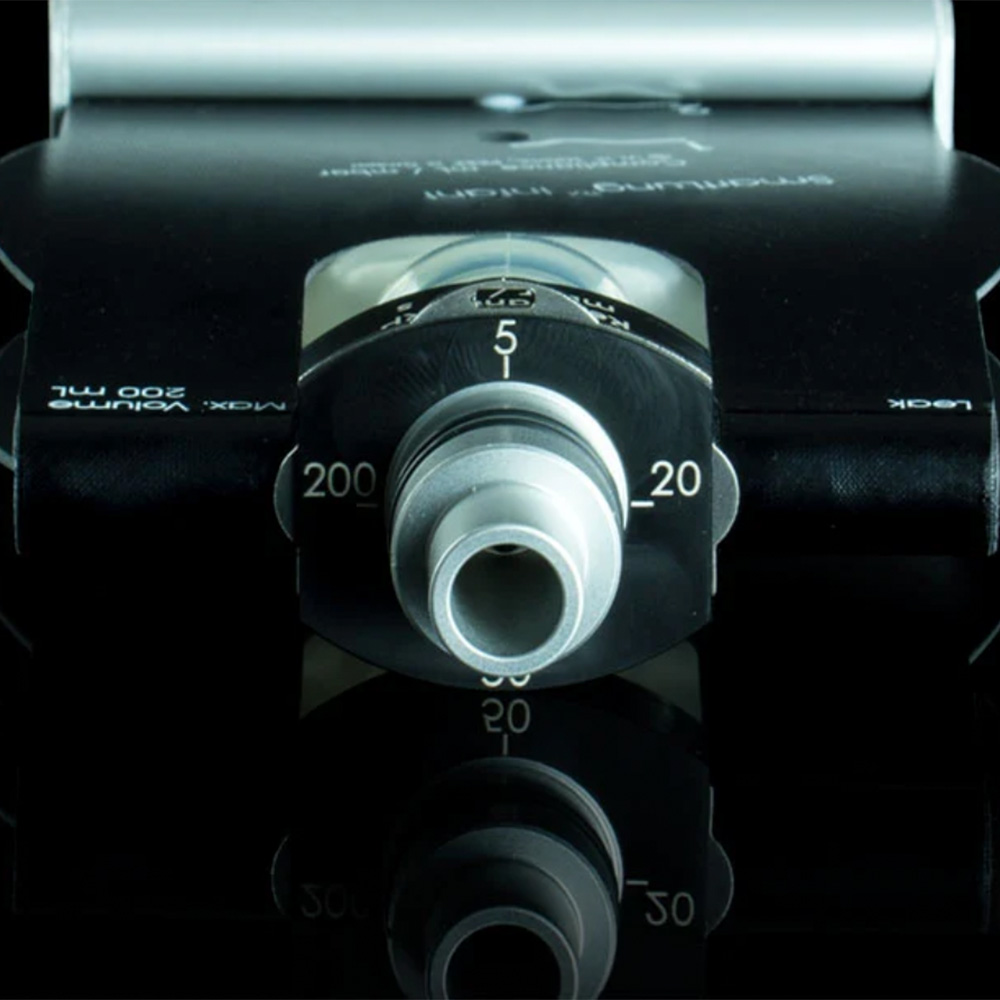

By adjusting the slider, the test lung can simulate various levels of compliance, and twisting the connector allows you to simulate different airway resistances.You can control the leakage by turning the leak knob located at the side of the SmartLung.

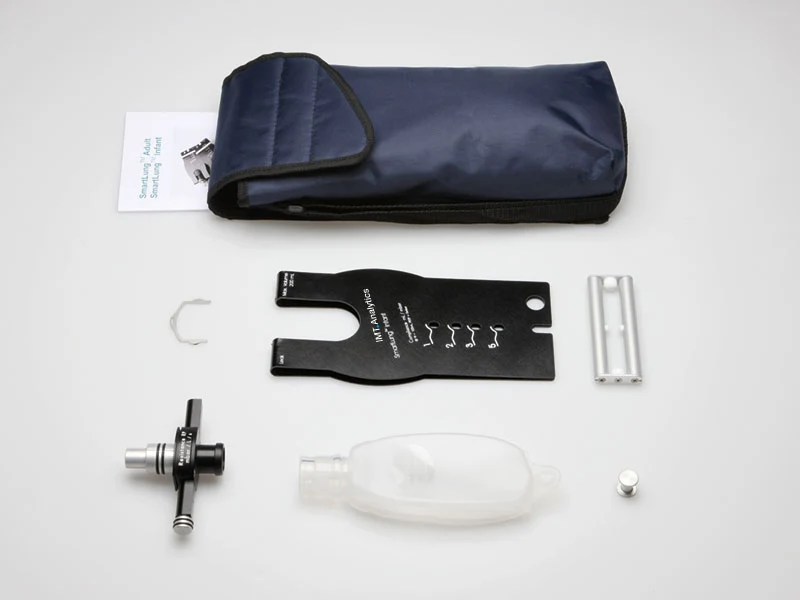

Scope of delivery
- SmartLung Infant
- User manual
- High-quality carrying bag
IMT Analytics test lungs are a simple and cost-efficient solution for safely verifying ventilators and anesthesia devices for functionality and precision.
