AT-2 Plus ECG Machine – Schiller
Call for Quote
Call For Quote

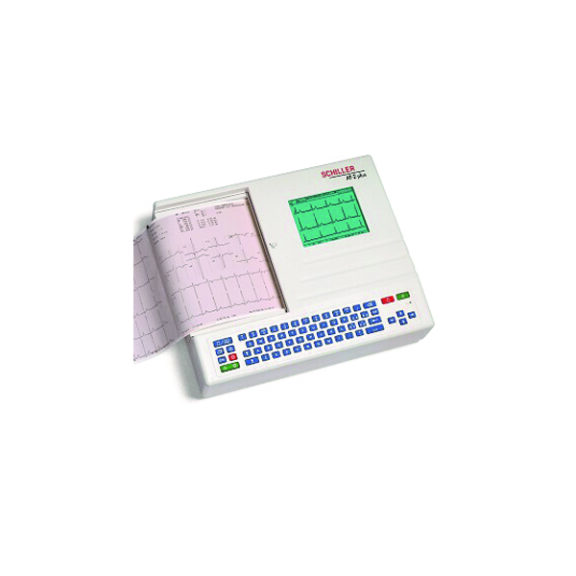

Schiller AT-2 ECG Unit from Schiller Medical includes full ECG “Push Button” Interpretation and Memory, Model Number 9.025000C
What's Included:
- 10 Lead Patient Cable
- 10 Snap Clip Electrode Adapters
- Disposable Electrodes
- (1) pack of paper
- Power Cable
- Operating Manual
Want to learn more about this product? read the long description below.
If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.
Description
Schiller AT-2 Plus ECG Features:
- Alphanumeric keyboard
- 6/12 channel representation of all 12 simultaneously acquired leads
- Large, high resolution backlit monitor for easy preview of ECG quality and spirometry curves
- Automatic and manual mode
- Full size 8 1/2″ x 11″ reports (A4)
- Integrated rechargeable battery that lasts for up to 3 hours of normal use
- Single button operation
- SCHILLER filter technology
The Spirometry function of the ECG is automatically available when the SP-250 sensor is plugged in.
It features 4 pulmonary function testing modes for the measurement of inspiratory and expiratory values.
• FVC Forced Vital Capacity
• SVC Slow Vital Capacity
• MVV Maximum Voluntary Ventilation
• MV Expired or Minute Ventilation
All test is initiated via an easy to use interface with dedicated menu options. It allows testing patients pre / post medication
Master Medical Equipment is happy to help with any questions that you may have. Have a question about servicing this device? Call ReNew Biomedical at 866-525-1618 and see what service options are available to you. More Info
| Weight | 12 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
| Condition |
