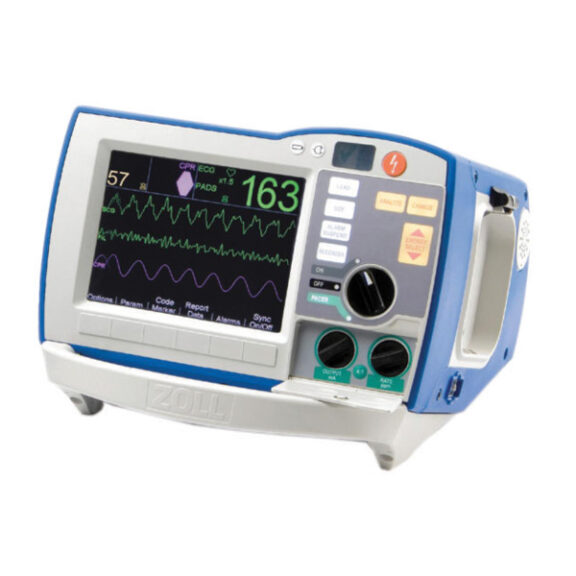

R Series Defibrillator – Zoll – New

SKU: ZOL35020000001130012

$14,905.00

brand-zoll

The ZOLL R Series ALS defibrillator is the first self-check Code Ready defibrillator on the market. ZOLL has produced an easy to use, reliable defibrillator that will go beyond your expectations no matter your needs.

For our most popular R Series Accessories check out the Accessories and Components tab below. Click here for a complete list of the R Series Accessories we carry.

This purchase is for a Base ALS Unit with 3/5 Lead ECG, AED, and Pacing. If you are looking for any other configurations, please call for a quote.

The Recertified version of this unit is available and ready to ship, here.

Operator’s Guide

This item ships within 2-3 Days of purchasing. Other items in the order may extend lead times

Add to Quote
If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.

Description

SHORT DESCRIPTION
The ZOLL R Series Defibrillator is the first self-check Code Ready defibrillator on the market. ZOLL Medical has produced an easy-to-use, reliable defibrillator that will exceed your expectations, no matter your needs. Whether the heart rhythm is shockable or non-shockable, all sudden cardiac arrest patients will require CPR, and the better the CPR, the better the outcome. With the R Series ALS and the R Series Plus, you can meet the needs of all providers, whether BLS or ALS-trained and all patients, from pediatrics to adults.

The Zoll R Series Defibrillator you order will include all necessary accessories for immediate operation out of the box. A one-year warranty covers our units through our sister company, ReNew Biomedical, and we offer a 30-day warranty on our accessories included with the unit.

Check out the Accessories and Components tab below for our most popular R Series Accessories. For acomplete list of our R Series Accessories, click here.

ZOLL R Series Defibrillator Features

The R Series Defibrillator is the newest hospital-quality defibrillator ZOLL offers and boasts extensive features and options. The primary R Series unit has 3-Lead ECG and pacing features, but oxygen saturation(SPO2), non-invasive blood pressure(NIBP), and end-tidal CO2(EtCO2) features are all available.

CPR Metrics on Display

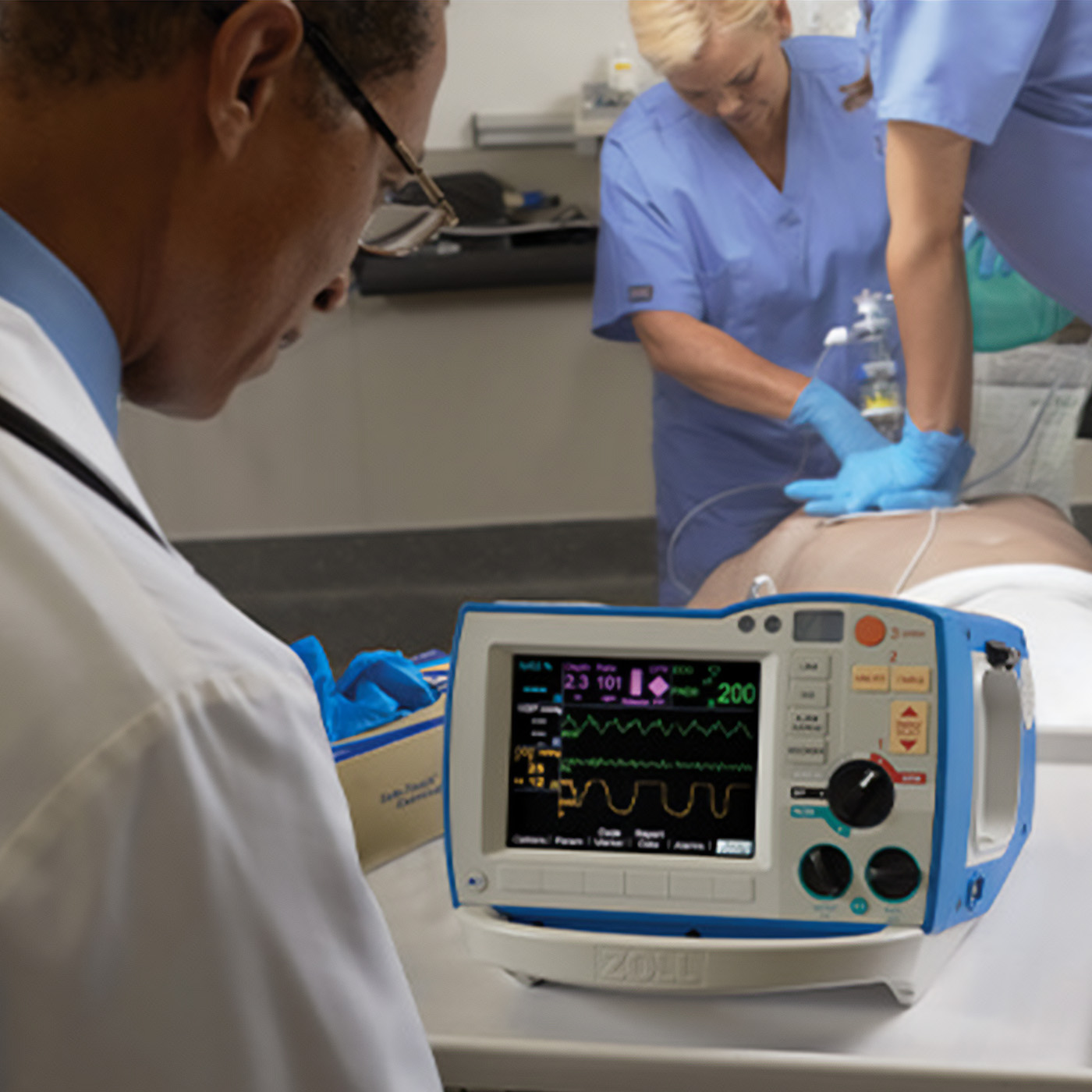

Using Real CPR Help® technology, the R Series provides audio and visual feedback that guides rescuers to deliver high-quality CPR consistently. If compressions aren’t deep enough, you will hear, “Push harder.” Detailed visual feedback, including the rate and depth of each compression, is displayed on the CPR Dashboard™. If either one falls out of the Zoll R Series Guidelines-recommended range, it will be indicated by a color change. Additionally, the diamond-shaped Perfusion Performance Indicator, or PPI, quickly indicates how well the combined rate and depth of compressions match current CPR Guidelines. The dashboard also provides a compression release indicator. When the bar is full, you know you’ve come completely off the chest to allow full recoil.

See-Thru CPR®

One of the most common reasons for interruptions in CPR is stopping to determine whether an organized, shockable rhythm has developed. With ZOLL Medical’s patented See-Thru CPR® technology, the compression artifact is filtered out, making it possible to see whether an organized rhythm is present during CPR. By reducing the duration of pauses, See-Thru CPR is just one more way the R Series is designed to help you provide high-quality CPR.

OneStep Simplicity

Delivering therapy is easy with the OneStep™ family of electrodes. Monitor, defibrillate, or pace—without needing a separate three-lead ECG cable—with OneStep Complete electrodes. To take advantage of Real CPR Help, use OneStep Complete, OneStep CPR, or OneStep Pediatric CPR electrodes. And, with a dual circuit design, OneStep electrodes can remain pre-connected, even during a 30-joule shock test. They’re available in the Zoll R Series in anterior/anterior or anterior/posterior configurations.

Extensive Pediatric Capabilities

When used with OneStep Pediatric electrodes, the Zoll R Series Defibrillator automatically reduces the shock energy to a lower protocol, starting at 50 joules rather than 120. When the R Series is in Advisory mode, or the R Series Plus is in AED mode, the OneStep Pediatric electrodes enable a pediatric algorithm to distinguish between a shockable and non-shockable rhythm. The unique OneStep Pediatric CPR electrodes also provide visual feedback by displaying the rate and depth of every compression on the CPR Dashboard. These electrodes are specifically designed to ensure precise CPR measurements in small children.

Always Code-Ready®

The R Series conducts a comprehensive self-test of more than 110 individual readiness indicators once a day. Using standard wireless technology, it can automatically relay this information to the Defibrillator Dashboard,™ which provides a quick snapshot of the overall health of the entire defibrillator fleet that can be viewed on a PC or mobile device. Defibrillator Dashboard optimizes defibrillator readiness and increases efficiency for the biomedical engineering team.

Debrief with Unmatched Accuracy

After a cardiac arrest event, the R Series Defibrillator supports continuous quality improvement (CQI) initiatives by pushing two buttons, sending the code data rapidly and wirelessly to a designated server. These comprehensive data include the number of shocks, ECG, end-tidal CO2 values, and CPR quality, which can be viewed using several code data programs. Choose the one that’s right for your institution.

MME is dedicated to serving your needs, so any unit ordered comes with the appropriate cables for the features requested.

Zoll R Series Defibrillator Specifications

General R Series Specs

Size: 8.2 in (20.8 cm) high x 10.5 in (26.7 cm) wide x 12.5 in (31.7 cm) deep.
Weight: 13.6 lbs (6.2 kg) with OneStep™ Cable and SurePower™ battery pack; 15.2 lbs (6.9 kg) with paddles.
Power Sources: AC Mains: 100 to 120 V AC (50/60 Hz), 220 to 240 V AC (50 Hz); Battery: Rechargeable lithium-ion battery pack.
Low Battery Indicator: A “LOW BATTERY” message appears on the monitor when there are less than 15 minutes of ECG monitoring.
R Series Design Standards: Meets or exceeds applicable requirements of UL 60601, AAMI DF80, IEC 60601-2-4, EN 60601-2-25, and 60601-2-27.
Patient Safety: All patient connections are electrically isolated.
Environmental: Zoll R Series Defibrillator Operating Temperature: 0°C to 40°C; Storage and Shipping Temperature: -20°C to 60°C; Humidity: 5% to 95% relative humidity, noncondensing; Vibration: IEC 68-2-6 and IEC 68-2-34; Shock: IEC 68-2-27, 50 g 6mS half-sine; Operating Pressure: 594 to 1060 millibars; Particle and Water Ingress: IEC 529, IP22; Electromagnetic
Compatibility (EMC): CISPR 11 Class B Radiated and Conducted Emissions; Electromagnetic Immunity: AAMI DF80, EN 61000-4-3 to 10 V/m; Electrostatic Discharge: AAMI DF80, EN 61000-4-2; Conducted Susceptibility: EN 61000-4-4, 61000-4-5, 61000-4-6.

R Series Defibrillator

Waveform: Rectilinear Biphasic.™ Patient Impedance Range: 15 to 300 ohms. Energy Selections: 1 to 10, 15, 20, 30, 50, 75, 100, 120, 150, and 200 joules selected using controls on the front of the defibrillator or sternum paddles. (Note: When using appropriate pediatric resuscitation electrodes, the 75-joule setting is replaced by 70- and 85-joule settings.)
Smart Step Energy Levels: Zoll R Series Defibrillator automatically escalates energy through a configured adult or pediatric protocol.
Energy Display: Shown on the R Series monitor for both selected and delivered.
Charge Time: Less than 7 seconds with a new, fully charged battery (first 15 charges to 200 joules); longer charge times may result in a depleted or older battery.
Synchronized Mode: Synchronizes R Series Defibrillator pulse to patient’s R wave. The “SYNC” message is displayed on the monitor, and markers are shown on both the monitor and the recorded ECG.
Charge Controls: Control from the front of the defibrillator or apex paddle.
Paddles: External apex/sternum paddles; adult plates slide off to expose the pediatric electrode surface.
Code Readiness Testing: Verifies R Series Defibrillator hardware, therapy delivery cable (with both paddles and electrodes), electrode condition, and expiration (with select OneStep electrodes) without needing a separate test fixture.

ECG Monitoring

Patient Connection: 3-lead ECG cable, 5-lead ECG cable, paddles, or hands-free electrodes; selectable by front panel switch.
Input Protection: Fully defibrillator protected. Circuits designed to prevent distortion of ECG signal by pacer pulse.
Implanted Pacemaker Spike Display: R Series Circuits are designed to detect most implanted pacemaker spikes and display a marker on the ECG trace.
Bandwidth: 0.5 to 21 Hz (-3dB) standard; 0.05 to 150 Hz diagnostic with configurable options of 0.5 Hz to 40 Hz or 1 Hz to 21 Hz.
Lead Selection: I, II, III aVR, aVL, aVF, V, P1, P2, P3 with OneStep Pacing electrode.
ECG Size: 0.5, 1.0, 1.5, 2.0, or 3.0 cm/mV display on the monitor.
Heart Rate Display: 0 to 300 bpm ±5%.
Heart Rate Alarm: User selectable for tachycardia at 60 to 280 bpm; for bradycardia at 20 to 100 bpm. On/Off status is displayed on the R Series Defibrillator screen.

CPR Dashboard Featuring Real CPR Help

They are activated when OneStep Complete, OneStep CPR, or OneStep Pediatric CPR electrodes are connected.
Detection Technology: Accelerometer.
Zoll R Series Compression Depth: Detected between 0.75 in (1.9cm) and 3.0 in (7.6 cm), with an accuracy of ±0.25 inches (0.6 cm).
R Series Compression Rate: Detected between 50 and 150 compressions per minute.
Release Bar: Ensures proper release off of the chest.
Feedback: Configurable audio and visual prompts for rate and depth are issued when compressions fall outside AHA/ERC recommendations.
CPR Idle Time Display: Indicates elapsed time since last detected chest compression.
Perfusion Performance Indicator (PPI): Integrates compression depth and rate to rapidly visualize CPR performance per AHA/ERC recommendations.

See-Thru CPR Filter

The Zoll R Series Defibrillator removes the compression-related artifacts from the ECG via an adaptive filtering technique.

R Series Display

Screen Type: Color, VGA liquid crystal display (LCD).
Screen Size: 6.5 inches (16.5 cm) diagonally.
Sweep Speed: 25 mm/sec.
Viewing Time: 5 seconds with standard display format.
Channels: 3.
Information: Heart Rate, Leads/Pads, Alarm On/Off, Selected Energy, Delivered Energy, User Prompts and Warnings, Code Readiness Test Results, SpO2, NIBP, EtCO 2, Pacer Functions, Code Markers, CPR Dashboard.

Zoll R Series Defibrillator Battery Packs

Type: 10.8 V (nominal) rechargeable lithium-ion.
Capacity: 5.8 amp hours.
Weight: 1.7 lb (0.77 kg).
Recharge Time: 5 hours or less with the integral charger.
Operating Time: >4 hours of continuous ECG monitoring; 100 maximal energy (200 joules) discharges; 3.5 hours of continuous ECG monitoring and pacing at 60 mA, 80 ppm.

Recorder

Technology: 90 mm thermal array; 80 mm grid width.
Speed: 25 mm/sec, 6-second delay.
Printing Modes: Manual or automatic.
Annotations: Time, date, defibrillation energy, patient impedance, heart rate, pacer output, QRS synchronization marker, ECG size, ECG lead, alarm, defibrillator test results, analyze ECG, ECG bandwidth. I/O, Storage, Communications
Sync In: 0 to 5 V (TTL Level) pulse, active high, 5 to 15 in duration, no closer than 200 ms apart; energy transfer begins within 25 ms of the leading edge of the sync-in pulse.
Marker Out: 0 to 5 V (TTL Level) pulse, active high, 10 ms in duration, the leading edge of the pulse occurs within 35 ms of the R wave peak.
ECG Output: 1.0 V/cm of deflection on a recorder; <25 ms delay from the patient ECG input. Card Slot: Compact flash compatible.
Internal Memory: Disk on the chip.

Advisory Defibrillation

R Series Shock Advisory Function: Evaluates ECG rhythm to determine if shock delivery is required.
Shockable Rhythms: Ventricular fibrillation with amplitudes >100 μV and wide-complex ventricular tachycardia with rates >150 bpm for adults or >200 bpm for pediatric applications. Refer to the Operator’s Manual for details on sensitivity and specificity performance.
Zoll R Series Protocol Configurations: Configurable for either CPR or shock-first-driven protocols. Energy sequences can be configured for single or multiple shocks with fixed or escalating energy levels. The CPR interval length is configurable in 1-minute increments up to 4 minutes.

External Pacing (not included in all configurations)

Type: VVI demand; asynchronous (fixed rate) when used without ECG leads or in asynchronous (ASYNC) pacing mode.
Pulse: Rectilinear, constant current: 40 ms ±2 ms; variable 0 to 140 mA ±5% or 5 mA, whichever is greater. The rate is variable from 30 to 180 ppm ±1.5%.
Output Protection: Fully defibrillator protected and isolated.
OneStep Pacing: Eliminates the need to connect separate ECG leads when used in conjunction with OneStep Pacing and OneStep Complete electrodes.

Pulse Oximetry with Masimo SET® Technology (not included in all configurations)

Saturation Range: 1-100% (%SpO2) with a resolution of 1%.
Pulse Rate Range: 25-240 ppm with a resolution of 1 ppm.
Saturation Accuracy: Non-motion conditions ±2% for adults/pediatrics; ±3% for neonates. During motion ±3% for all patients.
Pulse Rate Accuracy: Non-motion conditions ±3 ppm. During motion ±5 ppm.

Mainstream CO2 Capnostat 5 Sensor (not included in all configurations)

Principle of Operation: Nondispersive infrared (NDIR) single-beam optics, dual-wavelength, no moving parts.
Warm-up Time: Full specifications within 2 minutes at an ambient temperature of 25°C. Capnogram in 20 seconds.
Environmental: Operating Temperature: 0°C to 45°C, Storage and Shipping Temperature: -40°C to 70°C.

NIBP (not included in all configurations)

Patient Population: Adult, Pediatric.
Method: Oscillometric.
Control: Automatic and manual measurement.

WiFi Capable

WiFi 802.11 a/b/g/n Ambicom-specific 1100C-CF Card
P/N 8005-000101-01 compatibility.
Typical Readiness File: 750K.
Typical Code Data File: 1.2 MB

Financing and Rentals

Are you interested in renting or financing the Zoll R Series Defibrillator? Contact our partner company, JEM Rentals and Financing.

More Info

Weight 13.6 lbs
Dimensions 12.5 × 10.5 × 8.2 in
