Lifeline Semi-Automatic AED DCF-A100-EN – Defibtech
The original Defibtech Lifeline AED includes all mission critical features necessary to provide the most advanced treatment for Sudden Cardiac Arrest. It is so simple and unintimidating to use that even non-medical personnel can effectively save lives. Available in Spanish.
Defibtech Lifeline AED
The AED that started it all
Lifeline AED Features
Simple To Use

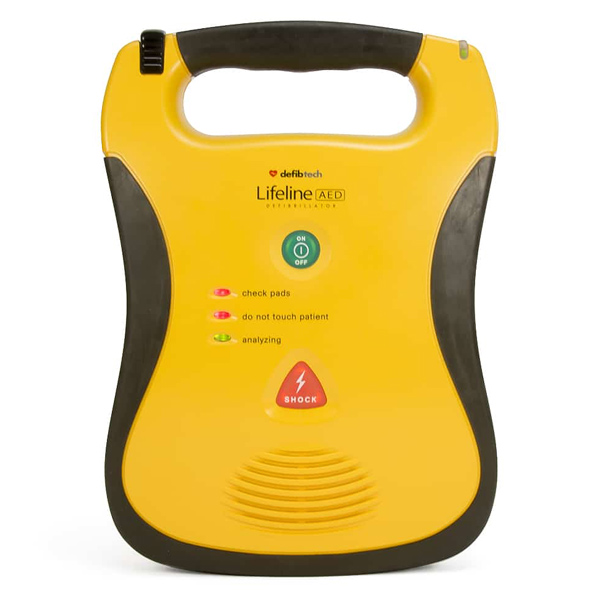

- Simple, clear, and straightforward: there are only two buttons on the unit, a green button to turn the unit on, and a red one to shock the patient if needed. The Lifeline AED: simple and intuitive.
- As protocols change over time, your unit can be upgraded in the field simply by inserting a data card.
- Data from the unit is recorded and easily retrieved from the device using a data card.
Clear Voice Prompts
Saving lives, while rewarding, can be stressful. A calm voice leads the user through the rescue, clearly and concisely stating each instruction, one step at a time. Brightly lit progress lights provide clear visual text guidance to reinforce voice instructions.
Long Life Battery
Two long-life batteries are available: a 5-year battery that will deliver 125 shocks or work continuously for 8 hours or a 7-year battery, unique in the industry, which will deliver 300 shocks or work continuously for 16 hours.
Designed for the Real-World
Lightweight, fully integrated design with no lids or moving parts that would confuse or delay a rescue; a roomy handle big enough even for gloved hands, and rubberized surfaces to ensure a sure grip in an emergency.
Active Status Indicator
The actively illuminated status indicator shows unit readiness, to ensure that the unit is ready to perform anytime, every time.
Highly Visible
“Locate the AED!” Time is of the essence in a rescue. The highly visible yellow color makes the unit easy to locate and deploy.
Award-Winning Ergonomic Design
Compact, portable and lightweight the Lifeline AED has won numerous awards for design and innovation. It was even displayed at the Museum of Modern Art in New York City as an example of innovative design!
Training Companion
The Lifeline AED has a training version of itself: the Defibtech Trainer AED. The Defibtech Trainer AED mimics the Lifeline AED in form and function, except that all rubberized exterior surfaces are red instead of black, to clearly distinguish the unit as a training device. As a result, the user is training with a training device that truly feels like the real thing.
Durable
Extremely durable; manufactured to withstand dust and water ingress; tested to military standards for shock and vibration; jet aircraft and helicopter tested.
Safe and Effective
The Lifeline AED uses biphasic technology, a clinically proven waveform, and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms that has extensive clinical experience-and success-in thousands of defibrillators around the world. Evaluation in hundreds of publications has demonstrated this technology to be the safest and most effective when it comes to saving lives.
Lifeline Semi-Automatic AED Specs
Semi-automatic external defibrillator
DDU-100A, DDU-100E
Biphasic Truncated Exponential
(Impedance compensated)
Adult: 150 Joules
Child / Infant: 50 Joules
(Nominal into 50 Ohm load)
4 seconds or less (from shock advised)
*Typical, with new battery at 25°C
Extensive voice prompts guide user through operation of the unit
Metronome
Lighted On / Off button
Lighted Shock button
“check pads”
“do not touch patient”
“analyzing”
“AED Status LED”
AHA / ERC (default); supports protocol updates
- Automatically evaluates patient impedance for proper pad contact
- Monitors signal quality and analyzes patient ECG for shockable / non‑shockable rhythms
Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations
15VDC, 2800 mAh
300 shocks or 16 hours continuous operation*
*Typical, with new battery at 25°C
7 years (installed in AED with 9V ASI battery)*
*Typical, with new battery at 25°C
15VDC, 1400 mAh
125 shocks or 8 hours continuous operation*
*Typical, with new battery at 25°C
5 years (installed in AED with 9V ASI battery)*
*Typical, with new battery at 25°C
Lithium / Manganese Dioxide
Disposable, recyclable, non-rechargeable
Visible
Audible
Automatic daily, weekly, monthly and quarterly circuitry tests
System integrity test on battery insertion
Pads preconnected tested daily
Unit and battery pack system test initiated by the user
Visual and audible indication of unit status
Adult: DDP-100
Child / Infant: DDP-200P
Adult: 16 inches2 (103 cm2)
Child / Infant: 7.75 inches2 (50 cm2)**Nominal, each pad
Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector
Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data card
ECG with event tag display, and audio playback when available
(optional) Up to 12 hours of ECG and event data storage (no audio option) or up to 1 hour and 40 minutes of audio (audio option)
ECG and event storage on a removable data card. Actual length of storage is dependent on card capacity
Operating: 0 to 50°C (32 to 122°F)
One Hour Operating Temperature
Limit (extreme cold): –20°C (–4°F)***
Standby: 0 to 50°C (32 to 122°F)***From room temperature to temperature extreme, one-hour duration
Operating / Standby: 5%-95% (non-condensing)
-500 to 15,000 ft (-150 to 4500 m) per MIL-STD-810F 500.4 Procedure ll
Ground (MIL-STD-810F 514.5 Category 20)
Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R. Zone 2, Curve G)
Jet Aircraft (RTCA/DO-160D Section 8, Cat H, Zone 2, Curves B & R)
MIL-STD-810F 516.5 Procedure IV
(1 meter, any edge, corner, or surface, in standby mode)
IEC 60529 class IP54;
Dust Protected, Splash Proof (battery pack installed)
(EN 61000-4-2: (15kV or direct contact up to 8kV)
EN 55011 Class B Group 1 and FCC Part 15
EN 61000-4-3 (20V/m)
8.5 x 11.8 x 2.7 Inches (22 x 30 x 7 cm)
With DBP-1400: 4.2 lbs (1.9 kg)
With DBP-2800: 4.4 lbs (2.0 kg)
