Lifeline View AED DCF-A2310EN – Defibtech
Meet the AED that’s taking easy-to-use to a whole new level. Other AEDs tell you what to do in an emergency. The Lifeline VIEW AED is the first and only one that shows you–with video in full-motion color. Now with the Dual-Language English/Spanish unit option, don’t let a language barrier prevent someone from saving a life!
We offer three options for the Lifeline View AED: New Condition, Dual-Language, and Recertified Condition.
Please select an option from the dropdown menu below.
Please be aware some accessories on the recertified version of the product may also be recertified, and all recertified units may be subject to longer lead times.
Related Tags
Defibtech Lifeline View
With award-winning design, durability, and easy maintenance – backed by the Defibtech commitment to innovation and excellence – we can guarantee you’ve never seen an AED like Lifeline View.
Lifeline VIEW Features

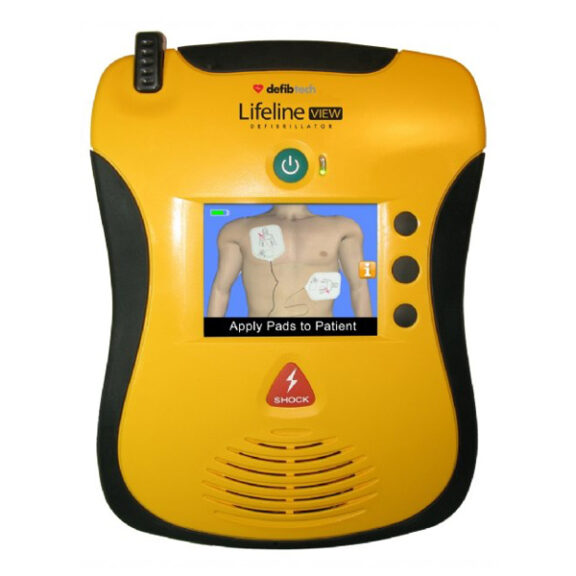

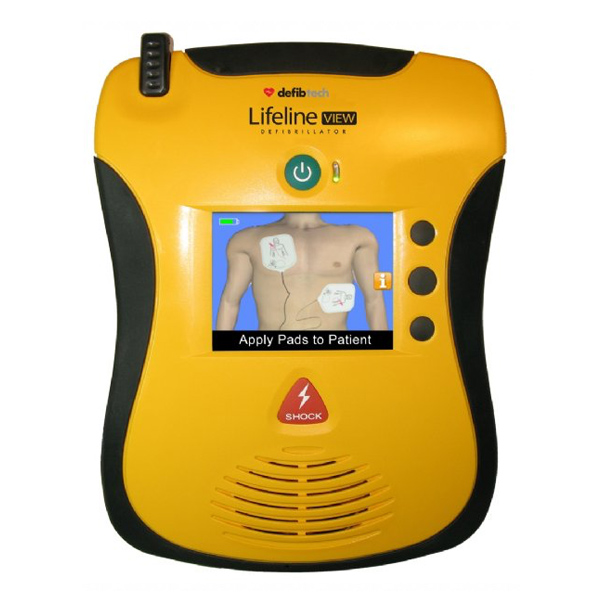

Full Color Interactive Display
They say a picture is worth a thousand words; now multiply that with the power of video. The Lifeline VIEW has a large, full-color interactive display that gives you step-by-step instructions for performing CPR, rescue breathing, and external defibrillation.
Real-time Protocol Selection
Not all rescuers are the same. Some people do compression-only CPR. Others may be trained to do both compression and rescue breathing. Real-time Protocol Selection allows you to switchover from one to both without skipping a beat, giving you the comfort and confidence to deliver emergency care your way.
Simple to Use
- One of the major problems with most AEDS is maintenance. Not with the Lifeline VIEW. The status screen gives you up to the minute information on maintenance if it’s required. In addition, built-in video help gives you easy, step-by-step guidance on maintenance that supplements the user manual. Proactive reporting monitors the status of the device and its components.
- As protocols change over time, your unit can be easily upgraded in the field with a data card.
- Data from the unit can be recorded or retrieved from the device using a data card.
Safe and Effective
The Lifeline VIEW uses biphasic technology, a clinically proven waveform and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms which has extensive clinical experience-and success-in thousands of defibrillators around the world. Evaluation in hundreds of publications has demonstrated this technology to be the safest and most effective when it comes to saving lives.
A Personal Coach at Your Side
While you are in the middle of the rescue, you may not remember how many compressions to provide and the timing between each one. The Lifeline VIEW has a built-in metronome that counts out the beat so you know what to do and when to do it.

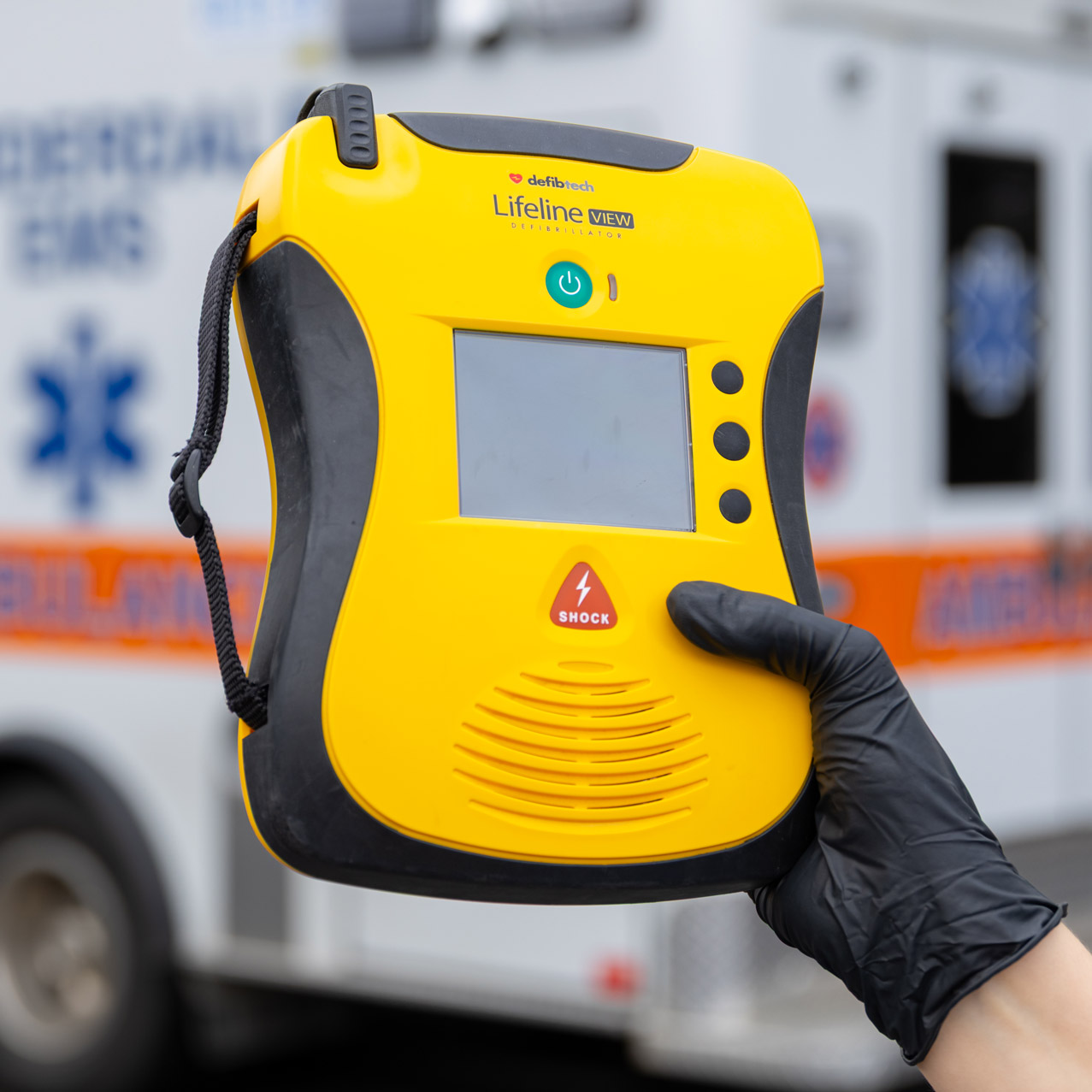

Award-Winning Ergonomic Design
Compact, portable, and lightweight-under three pounds-the Lifeline VIEW represents the newest generation in a family of defibrillators that have won a number of industry awards for design and innovation.
Durable
The VIEW’s ruggedness is measured by a specific set of criteria. It is one tough little unit, coming out on top in some of the most demanding environmental tests.
Lifeline View Specifications
Semi-automatic external defibrillator
DDU-2300
Biphasic Truncated Exponential
(Impedance compensated)
Adult: 150 Joules
Child / Infant: 50 Joules
(Nominal into 50 Ohm load)
Lighted On / Off button
Lighted Shock button
Less than 4 seconds (from shock advised)
*Typical, with new battery at 25°C
High-resolution color LCD
Full motion video
On-screen text prompts
Video and voice coaching
On-demand video help
Extensive voice prompts guide user through operation of the unit
AHA/ERC (default); supports protocol updates by the user (password protected)
Automatically evaluates patient impedance for proper pad contact
Monitors signal quality and analyzes patient ECG for shockable / non‑shockable rhythms
Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations
DBP-2003 (standard),
DBP-2013 (aviation; TSO C-142a)
12V, 2800 mAh
Lithium/Manganese Dioxide
Disposable, recyclable, non‑rechargeable
125 shocks or 8 hours continuous operation
*Typical, with new battery at 25°C
4 years
*Typical, with new battery at 25°C
Visible
Audible
Automatic daily, weekly, monthly and quarterly circuitry tests
System integrity test on battery insertion
Pads preconnected tested daily
Unit and battery pack system test initiated by the user
Visual and audible indication of unit status
Unit self-test results
Pads and battery information (status and expiration)
Adult: DDP-2001
Child / Infant: DDP-2002
Adult: 12 inches2 (77 cm2)
Child / Infant: 7.75 inches2 (50 cm2)
**Nominal, each pad
Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector
Critical ECG segments and rescue event parameters are recorded (greater than 60 minutes) and can be downloaded to a removable data card
ECG with event tag display, and audio playback when available
(optional) Up to 30 hours of ECG and event data storage (no audio option) or up to 3 hours of audio (audio option)
ECG and event storage on a removable data card. Actual length of storage is dependent on card capacity
Event download and maintenance operations
Operating: 0 to 50°C (32 to 122°F)
One Hour Operating Temperature
Limit (extreme cold): –20°C (–4°F)***
Standby: 0 to 50°C (32 to 122°F)***From room temperature to temperature extreme, one hour duration, updated specification for DDU-2000 Series AEDs running software revision 2.4 or above
Operating / Standby: 5%-95% (non-condensing)
-500 to 15,000 ft (-150 to 4500 m) per MIL-STD-810F 500.4 Procedure ll
Ground (MIL-STD-810F 514.5 Category 20)
Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R. Zone 2, Curve G)
Jet Aircraft (RTCA/DO-160D Section 8, Cat H, Zone 2, Curves B & R)
MIL-STD-810F 516.5 Procedure IV
48 inches (1.2 meters), any edge, corner, or surface, in standby mode
IEC 60529 class IP55;
Dust Protected,
Protected against water jets (Battery pack installed)
(EC 61000-4-2: (Open air up to 15kV or direct contact up to 8kV)
CISPR 11 Group 1 Level B and FCC Part 15
IEC 61000-4-3 and IEC 61000-4-8
7.3 x 9.5 x 2.3 Inches (18.5 x 24 x 5.8 cm)
Less than 3 lbs (1.4 kg)
