Renting a Philips Heartstart FRx is a cost-effective way to equip your facility or event for a short-term period where critical medical equipment is needed. We offer long and short-term rental options for a variety of needs, such as events, temporary sites, or seasonal AED needs.Your recertified FRx AED rental comes patient-ready, with all needed accessories. To rent an AED, call us at 866.797.3188 or submit an online quote today. Our rental team will review your request and respond within 24 hours.Learn more about our rentals terms here.

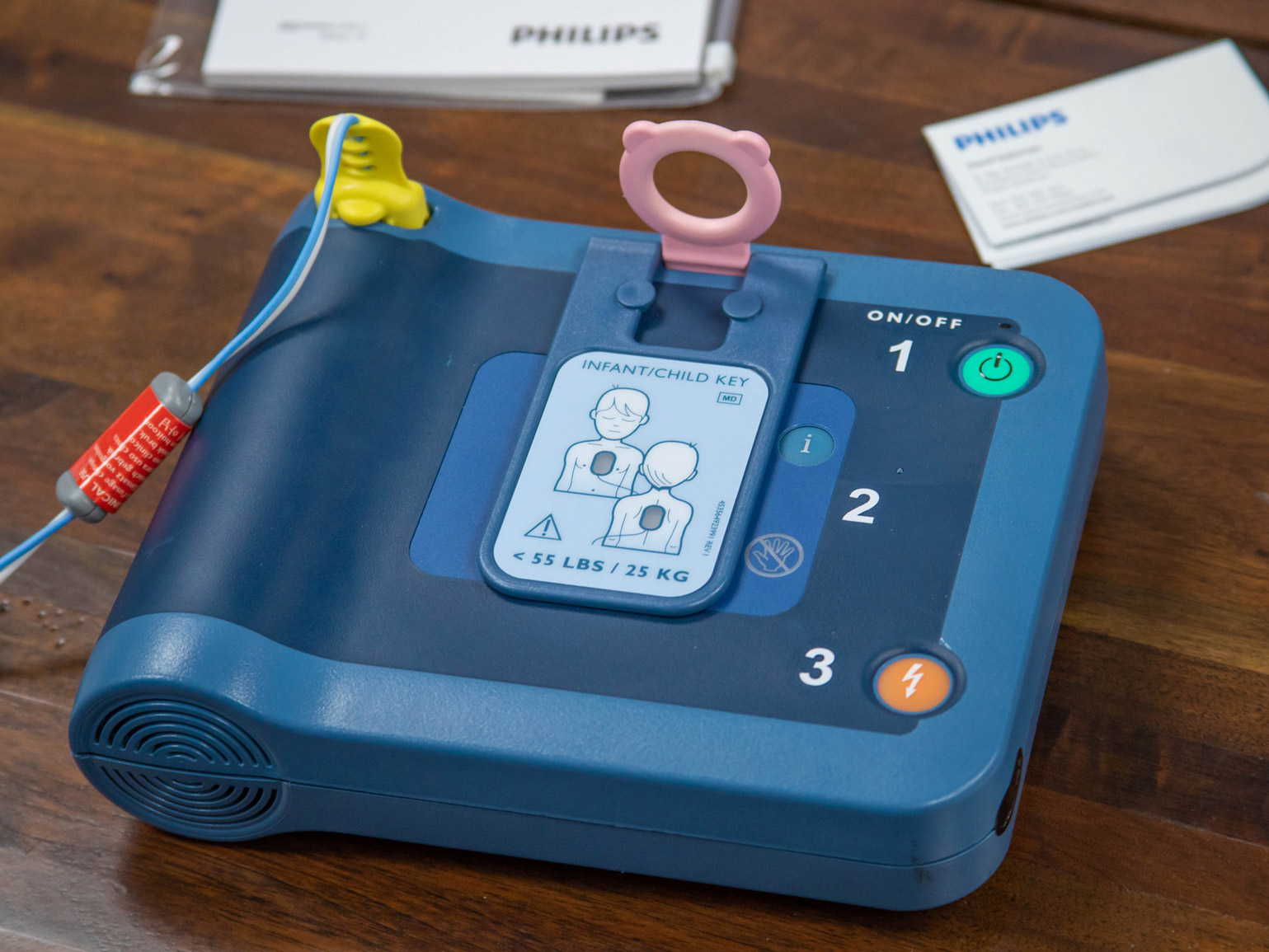

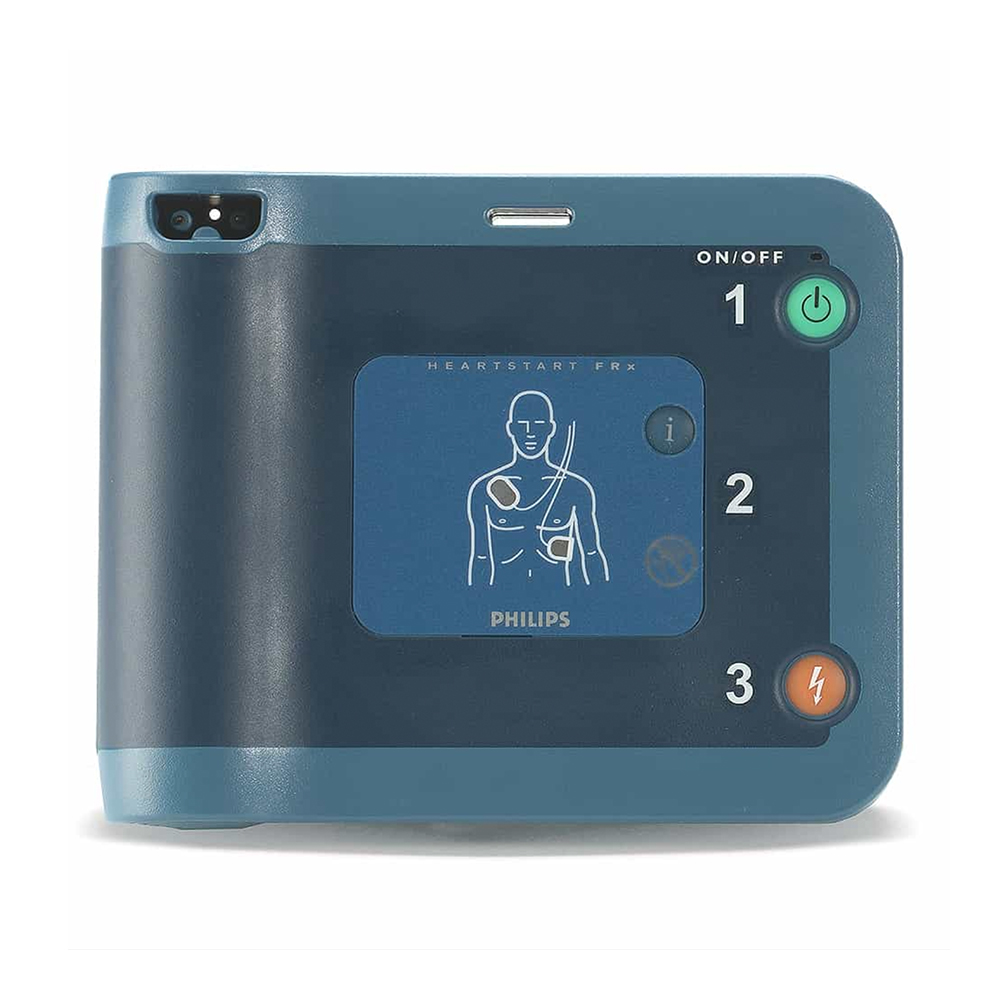

The HeartStart FRx AED is a light-weight, rugged, reliable device that provides step-by-step voice instructions, CPR guidance and other patient-centered benefits to help responders feel confident when saving a life.
For Pediatric capabilities, an FRx Pediatric Key will be required.
Unit Training and Service Contracts are available for an additional cost. Please call one of our friendly and knowledgeable customer service representatives for more info or to purchase these additional options.
Please select either New or Recertified from the dropdown below.
Related Tags
Easy as 1–2–3
Patented Quick Shock feature allows the FRx to typically deliver a shock within 8 seconds after CPR. Studies show that minimizing time to shock after CPR may improve survival.
- Press the green On/Off button, which activates voice instruction and visual icons.
- Place the pads on the patient as directed.
- When advised by the device, press the orange Shock button.
HeartStart FRx Accessories
Heartstart FRx Semi-Rigid Case 989803139251 – Philips
Onsite & FRx AED Battery Non-Rechargeable M5070A – Philips
Simplified maintenance
Pre-connected SMART Pads II can be used for both adults and children. Once installed and activated, the FRx is easy to maintain. It performs a series of automatic self-tests, daily, weekly, and monthly to check pad readiness and verify functionality and calibration of circuits and systems. It can last up to four years between battery replacements.
HeartStart FRx PDFs
Rugged and Ready to Use
Download PDF Philips SMART Analysis AED Algorithm
Download PDFHeartStart FRx Specifications
Model number: 861304
Includes defibrillator, battery, SMART Pads II (1 set), Setup and Maintenance Guides, Owner’s Manual, Quick Reference Guide, date sticker
Order Option: R01
Includes defibrillator, battery, carry case, SMART Pads II (1 pre-connected set, 1 spare set), Setup and Maintenance Guides, Owner’s Manual, Quick Reference Guide, date sticker
Biphasic truncated exponential; waveform parameters are automatically adjusted as a function of patient defibrillation impedance
Adult defibrillation: nominal peak current 32 A (150 J nominal into a 50 ohm load) Pediatric defibrillation with optional FRx Infant/Child Key installed: nominal peak current 19 A (50 J nominal into 50 ohm load)
Device follows preconfigured settings; defibrillation and CPR protocol can be customized using HeartStart Event Review Pro software
2.4 x 7.1 x 8.9 inches (6 x 18 x 22 cm) H x D x W
With battery and pads case: 3.5 lbs (1.5 kg) Without battery or pads case: 2.6 lbs (1.2 kg)
Waterjet proof IPX5 per IEC60529 Dust protected IPX5 per IEC60529
- Operating/Standby: 0° – 50° C (32° – 122° F)
- Transient operating (for 20 minutes or less, after rapid transition from 20° C [68° F]): -20 to 50° C (-4° to 122° F); under non-condensing humidity conditions
0 to 4,572 m (0 to 15,000 ft)
Meets RTCA/DO-160 Section 21 (Category M – Radiated Emissions) and Section 20 (Category M – Conducted Immunity, and Category D – Radiated Immunity)
500 kg (1100 lb)
Withstands 1.22 m (4 ft) drop on any edge, corner or face of the device onto masonry surface
- Operating: meets MILSTD 810G Fig. 5146E-1, random
- Standby: meets MILSTD 810G Fig. 5146E-2, swept sine (helicopter)
Meets CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8
Detailed voice prompts and visual icons guide responder through use of the defibrillator
Verbal instructions for adult and infant/child CPR provide instructions and audio cues for the appropriate number, rate and depth of chest compressions, as well as for each breath
Green On/Off button, blue-lit i-button, orange Shock button, optional Infant/Child Key
Ready light, blue-lit i-button, caution light, illuminated pads, icons; Shock button lights up when shock is advised
Wireless transmission of event data to a PC using the IrDA protocol
Data management software (optional) for download and review of data retrieved through defibrillator’s infrared data port
First 15 minutes of ECG and the entire incident’s events and analysis decisions
Evaluates patient ECG to determine if a rhythm is shockable. Rhythms considered shockable are ventricular fibrillation (VF) and certain ventricular tachycardias (VT) associated with lack of circulation. For safety reasons, some VT rhythms associated with circulation will not be interpreted as shockable, and some very low-amplitude or low-frequency rhythms will not be interpreted as shockable VF.
Meets AAMI DF80 guidelines and AHA recommendations for adult defibrillation
Able to deliver a shock as soon as the device indicates a shock is advised
Able to deliver a shock after the last chest compression of a CPR interval, typically in 8 seconds
Typically less than 20 seconds between shocks in a series
Allows ECG analysis even in the presence of most pacemaker artifact and electrical noise sources; other artifacts are detected and corrective voice prompts issued
- Standard: M5070A
- Aviation: 989803139301 (TSO-C142, U.S. only)
9 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life primary cell
When new, a minimum of 200 shocks or 4 hours of operating time at 25° C (77° F)
Battery is labeled with an install-by date of at least five years from date of manufacture
Typically, four years when stored and maintained according to directions provided in the Instructions for Use
989803139261
80 cm2 (12.4 in2) each
121.9 cm (48 in)
Pads case is labeled with a use-by date of at least two years from date of manufacture
Item number: 989803139311
989803139271
Special pads place the FRx into training mode and disable its energy delivery capability; features eight real-world training scenarios
Tests internal circuitry, waveform delivery system, pads and battery capacity
Specifically tests readiness-for-use of pads (gel moisture)
Upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness
Blinking green “Ready” light indicates ready for use; audible “chirp” indicates need for maintenance
