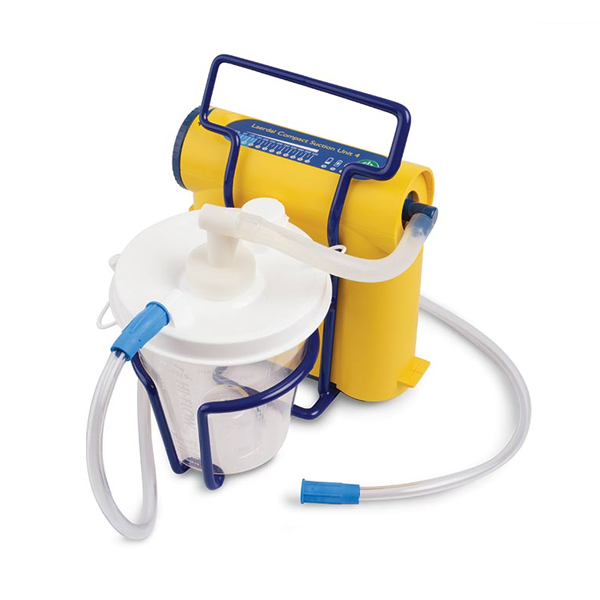

LCSU 4 800 ml Complete Unit 880051 – Laerdal

Features

• One-hand-grip design
• Small and lightweight
• Disposable canister systems
• Easy to convert between 300 and 800 ml canister version
• Internal integrated filter systems for all canisters
• High efficiency filter kit (for 800 ml solution)
• HEPA rated bacterial filter
• Latex free
• Big vacuum regulator dial, with “clicking sound”
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum directions
• Wire Stand for stability (for both versions)
• High density carry bags
• No-tools-necessary field changeable battery
• Rechargeable Battery, NiMH 12 volt 1.6 Ah.
• Battery run time: Approximately 45 minutes (free flow)
• AC/DC Adapter Charger (100-240 V)
• External Battery Charger
• 12V DC Power-cord for connection to vehicle connection
• Multi languange Directions for Use (19 languages)

Performance:

• High flow / High vacuum
• Air Flow @ Vacuum Inlet: 30 LPM (free flow) typical
• Vacuum – Max.: 550+ mmHg (73.3 kPA)
• Vacuum – Range: 50 – 550+ mmHg (6.7 – 73.3 kPa)

Small & Lightweight 800 ml – 4.3 lbs Unique Click-in-Place Canister No vacuum tube between the canister and the suction pump is necessary – just click-in-place and go. A clean and efficient solution, a used canister can be replaced quickly with a new one when suctioning is completed. The canister is sealed, with an internal filter. The filter automatically stops suction/flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use. Once wet the filter forms a gel which prevents ingress of fluid into the pump. 800 ml Canister When extra suction volume is needed, an alternative LCSU 4 version is available. This version has a 800ml Canister supported by a Wire Stand bracket. The Canister is disposable, it can not be cleaned. The Canister has an internal filter in the lid and mechanical shutoff valve that protects against contamination and overflow. To increase filtration efficiency the Vacuum Tube may be replaced with a High Efficiency Filter Kit. The Kit is used in situations where there is a high risk of cross-contamination. Easy to change Canister capacity Each version can easily be converted to the other canister option by ordering additional parts.

Weight	4.3 lbs
Dimensions	10.3 × 8.5 × 10.3 in
Condition	New Medical Equipment
