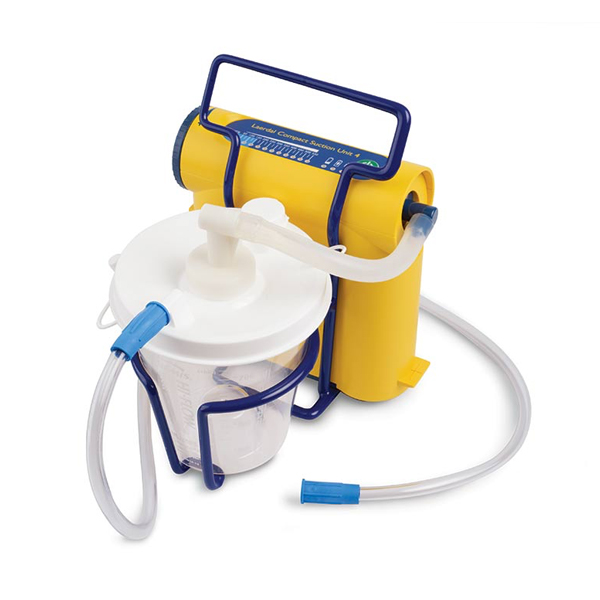

Laerdal LCSU 4 800 ml RTCA Complete unit 880052 – Laerdal – New

Name: Laerdal LCSU 4 800 ml RTCA Complete unit 880052 - Laerdal - New
SKU: LAE880052
Availability: OutOfStock

SKU: LAE880052

$965.00

Laerdal’s LCSU® 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder.

This model LCSU 4 meets RTCA/DO-160G Section 21 Category M (for battery operation only; commercial aircraft, airborne equipment) standard. All LCSU 4 units with RTCA approval are certified for use in aircraft.

CE marked – This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa

Want to learn more about this product? read the long description below.

This item is currently unavailable, but could be shipped within 4+ weeks. Please call for more info or to place an order.

Accessories

If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.

Description

Features:

One-hand-grip design
Small and lightweight
Click-in-place 800 ml canister, no vacuum tube needed
Disposable canister systems
Easy to convert between 300 and 800 ml canister version
Internal integrated filter systems for all canisters
High efficiency filter kit (for 800 ml solution)
HEPA rated bacterial filter
Latex free
Big vacuum regulator dial, with “clicking sound”
LED display for use day or night
Battery level indicator
Children vacuum range area (marked in blue) on the control panel
Arrows pointing the vacuum directions
Wire Stand for stability (for both versions)
High density carry bags
No-tools-necessary field changeable battery
Rechargeable Battery, NiMH 12 volt 1.6 Ah.
Battery run time: Approximately 45 minutes (free flow)
AC/DC Adapter Charger (100-240 V)
External Battery Charger
12V DC Power-cord for connection to vehicle connection
Multi language Directions for Use (19 languages)

Performance

High flow / High vacuum
Air Flow @ Vacuum Inlet: 30 LPM (free flow) typical
Vacuum – Max.: 550+ mmHg (73.3 kPA)
Vacuum – Range: 50 – 550+ mmHg (6.7 – 73.3 kPa)

Small & Lightweight 800 ml – 4.3 lbs Unique Click-in-Place Canister No vacuum tube between the canister and the suction pump is necessary – just click-in-place and go. A clean and efficient solution, a used canister can be replaced quickly with a new one when suctioning is completed. The canister is sealed, with an internal filter. The filter automatically stops suction/flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use. Once wet the filter forms a gel which prevents ingress of fluid into the pump. 800 ml Canister When extra suction volume is needed, an alternative LCSU 4 version is available. This version has a 800ml Canister supported by a Wire Stand bracket. The Canister is disposable, it can not be cleaned. The Canister has an internal filter in the lid and mechanical shutoff valve that protects against contamination and overflow. To increase filtration efficiency the Vacuum Tube may be replaced with a High Efficiency Filter Kit. The Kit is used in situations where there is a high risk of cross-contamination. Easy to change Canister capacity Each version can easily be converted to the other canister option by ordering additional parts.
