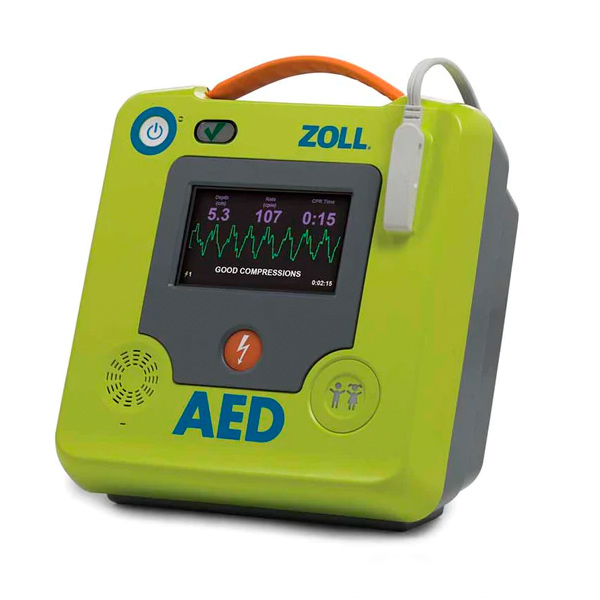

Zoll AED 3 BLS 8513-001103-01 – Zoll – New

SKU: ZOL8513-001103-01



This is the newest BLS AED from Zoll Medical, the AED 3 BLS. ZOLL optimized the AED 3 BLS for professional rescuers and provides in-depth rescue support for victims of sudden cardiac arrest (SCA). Rescuers receive detailed real-time feedback on CPR quality with the CPR Dashboard™.

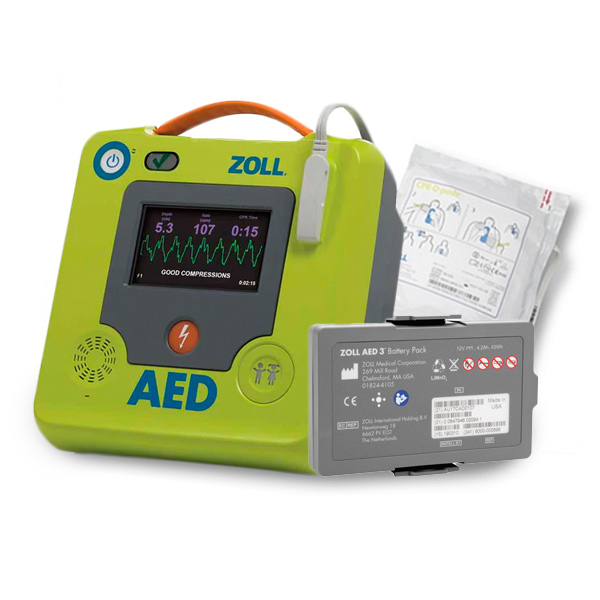

What's Included:

  • ZOL8513-001103-01 (Zoll AED 3 BLS)
  • ZOL8000-000696 (Zoll AED 3 Battery)
  • ZOL8900-0800-01 (CPR-D Padz)
  • User Manual

This item is currently unavailable, but could be shipped within 4+ weeks. Please call for more info or to place an order.

If you are eligible for exemption from sales tax, please call or email us to place your order. All orders completed online will have applicable sales tax added.


The all-new ZOLL AED 3 BLS Automated External Defibrillator makes the best even better. It improves the best support for rescuers, provided by the AED Plus® since 2002. It’s easy to use and designed upon years of usability research with trained and untrained rescuers. It includes improved Real CPR Help®, ZOLL’s real-time CPR feedback technology.

ZOLL optimized the AED 3 BLS for professional rescuers and provides in-depth rescue support for adult and child victims of sudden cardiac arrest (SCA). ZOLL AEDs set the bar for dependability and reliability, empowering rescuers worldwide to save lives.


Designed for Professional Rescuers:

The ZOLL AED 3 BLS provides more detailed CPR feedback for professional rescuers. The AED displays the patient’s ECG, the total elapsed time of the arrest, the remaining time for the current CPR cycle, and the number of shocks delivered. After the rescue event, the Wi-Fi-connected AED 3 BLS can upload clinical event files. The user can later view them in ZOLL’s RescueNet® CaseReview software program.

Real CPR Help®:

The ZOLL AED 3 BLS defibrillator provides Real CPR Help®, which helps providers deliver high-quality CPR by providing audio feedback and displaying the depth and rate of each compression on the CPR Dashboard™.

CPR Dashboard™:

Unique to ZOLL, rescuers can receive detailed real-time visual feedback on CPR quality with the CPR Dashboard™. Users can configure the AED 3 BLS to show the CPR Dashboard™ only or both the CPR Dashboard and ECG. Depth and rate indicators are highlighted in red if the compression rate is too slow or the depth is too shallow when in adult rescue mode. A sensor built into ZOLL’s family of CPR electrodes captures each compression’s rate, depth, and release. Real CPR Help® technology displays all this information in real time on the dashboard.

RescueNet Event Summaries:

See the state of readiness on RescueNet DeviceDashboard. AED connectivity enables fast and accessible event and ECG data distribution to medical personnel. As part of the ZOLL RescueNet software product suite, CaseReview enables the integration of data collected by other ZOLL devices used throughout the patient’s treatment process. RescueNet aggregates data from the ZOLL AED 3, X Series®, and ZOLL R Series® devices used during the rescue at the hospital for review to provide a more comprehensive patient care history.

Intelligent pediatric capability:

Easily convert the AED 3 for pediatric use with the Pedi-padz® pediatric electrodes, which can be purchased separately for children up to 8 years old or weighing less than 55 pounds.

RapidShock® Analysis:

RapidShock analysis creates the industry’s shortest rhythm analysis, allowing the ZOLL AED 3 BLS to deliver a shock in as little as 5 seconds if needed. Minimizing pause time can improve patient outcomes from sudden cardiac arrest and CPR quality.

Comprehensive Automatic Self-Tests:

Know that your AED is ready to go straight away with automatic self-testing. The Zoll Semi-Automatic AED 3 will run a self-diagnosis and notify the user of any pressing issues that would hamper its lifesaving functions. This feature makes maintenance a breeze and helps ensure readiness.

Rugged Design :

The ZOLL AED 3 BLS defibrillator can withstand the extreme environments in which professional rescuers often work. With an IP (ingress protection) rating of 55 and a 1-meter drop test rating, the ZOLL AED 3 BLS is highly impervious to moisture, dust, and rough handling.

Low Total Cost of Ownership:

ZOLL AED 3 BLS includes a battery with a five-year shelf life and an eight-year device warranty. The standard warranty for a ZOLL AED 3 BLS defibrillator is six years from the original ZOLL shipment date. Completing the registration form (serial number required) for your device extends the standard warranty from six to eight years at no additional cost, resulting in fewer replacements, improved readiness, and a low total cost of ownership.

Easy Maintenence:

It’s easy to maintain because Program Management Onboard™ cloud connects via Wi-Fi to ZOLL’s PlusTrac™ AED program management system. No maintenance inspections are needed.

Wi-Fi and USB Connectivity:

Detailed performance data of each rescue is exported easily via USB or transferred directly over Wi-Fi using RescueNet® CaseReview. Use the collected data on CPR rate, release velocity, depth, and compression fraction to evaluate and improve the performance of future responders. AED Wi-Fi connectivity enables fast event and ECG data distribution to medical personnel.

Zoll AED 3 BLS Specifications


Protocol: Semi-automatic
Waveform: ZOLL Rectilinear Biphasic™
Defibrillator Charge Hold Time: 30 seconds
Energy Selection: Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J). User configurable.
Patient Safety: Every patient connection is electrically isolated.
Charge Time: Less than 10 seconds with a new battery
Pre-shock Pause: With RapidShock Analysis less than 5 seconds (semi-automatic) with new battery
Self-test: User-configurable automatic self-test every day or every seven days.
Default: Every seven days. Monthly full-energy test (200 J).
Automatic Self-Test Checks: Battery capacity, status, and expiration; electrode connection and expiration; ECG and charge/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
CPR Metronome Rate: Constant 105 (+/- 2) CPM
Depth Measurement: 1.9 cm to 10.2 cm; 0.75 in to 4 in
Defibrillation Advisory: Evaluate electrode connection and patient ECG to determine if defibrillation is required
Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults and 200 BPM for pediatrics. Refer to the ZOLL AED 3 Administrator’s Guide for ECG analysis algorithm sensitivity and specificity.
Patient Impedance Measurement Range: 10 ohms to 300 ohms
Defibrillator: Protected ECG circuitry
Display Format: High-resolution LCD with capacitive touch panel
Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
Display Sweep Speed: 25 mm/sec
Display Viewing Speed: 3.84 seconds
Data Recording and Storage: User-configurable for 1 or 2 clinical events for 120 minutes for each event. Includes ECG, impedance measurements, device prompts, and CPR data. With voice recording enabled, the AED could still store the same data with synchronous audio for 60 minutes for each event.
Data Recovery: Controlled by touchscreen, uploaded to a USB memory stick or RescueNet CaseReview over a Wi-Fi network
Device Size: (H x W x D) 5.0 in x 9.3 in x 9.7 in; 12.7 cm x 23.6 cm x 24.7 cm
Weight: 5.5 lbs; 2.5 kg
Power: Lithium manganese dioxide battery pack
Wi-Fi Enabled Devices: Wireless 802.11 a/b/g/n; Security Protocols, WPA1, WPA 2, WPA Personal, WPA Enterprise; Internal Clock Synchronization: Coordinated Universal Time (UTC) synchronization occurs when communicating with the ZOLL Online server.
Port: USB 2.0
Audio Recording: User-configurable on/ off (default=off)
Device Classification: Internally powered per EN 60601-1 and Class III
Design Standards: This device meets applicable requirements of EN 60601-1, EN 60601-1-11, IEC 60601-2-4
Environmental Operating Temperature: 0° to 50°C; 32° to 122°F
Storage Temperature: -30° to 70°C; -22° to 158°F
Humidity: 10% to 95% relative humidity, non-condensing
Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat. 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2 ; EN1789, Sweep per EN 60068-2-6 Test Fc
Shock: IEC 60068-2-27; 100G
Altitude: -381 m to 4,573 m; -1,250 to 15,000 ft
Particle and Water Ingress: IP55
Drop Test: 1 meter; 3.28 ft


Battery Capacity: A typical new battery running at an ambient temperature of 68° F to 77° F (+20° C to +25° C) provides 140 defibrillator discharges at max energy (200 joules) or 6 hours of constant monitoring (with 2-minute CPR periods). Note: CPR periods shorter than 2 minutes can decrease the operating time obtained from a new battery.
Type: Disposable, sealed lithium manganese dioxide
Battery Standby Life (once installed): 5 years with weekly self-test*. Battery end of life indicated by blank status window
(typical remaining shocks: 9).
Battery Shelf Life: Store for up to 2 years at 23°C (77°F) before installing in ZOLL AED 3 BLS to maintain the battery life detailed above.
Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 10% to 95% (non-condensing)
Weight: 317.5 grams; 0.7 lbs
Size: (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
Nominal Voltage: 12 volts


Shelf Life: 5 years
Conductive Gel: Polymer Hydrogel
Conductive Element: Tin
Packaging: Multilayer foil laminate pouch
Impedance Class: Low
Cable Length: 48 in (1.2 m)
Sternum: Length: 6.1 in (15.5 cm); Width: 5.0 in (12.7 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Apex: Length: 6.1 in (15.5 cm); Width: 5.6 in (14.1 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Complete Assembly: Folded length: 7.6 in (19.4 cm); Folded width: 7.0 in (17.8 cm); Folded height: 1.5 in (3.8 cm)
Design Standards: Meets applicable requirements of ANSI/AAMI/ISO DF-39-1993

Service and Preventative Maintenance for the Zoll AED 3 BLS

This unit has options for servicing and preventive maintenance by our authorized service partner, ReNew Biomedical. Give them a call at 866-257-3565.

The ReNew Service includes:

  • Full-coverage preventative maintenance agreements and service contracts for any defibrillator or AED
  • Free domestic return shipping and free BioStat cleaning
  • Free evaluation of your AED before any work begins
  • Rental, lease, and financing options through MME
  • 11 Point Inspection Guarantee on any AED serviced
  • ReNew Certification Certificate with each service which meets or exceeds OEM Standards

Financing and Rentals

If you are interested in alternative payment options Zoll Semi-Automatic AED 3, contact our partner company, JEM Rentals and Financing.

If you only need the equipment for a short time, renting recertified or new equipment will typically be your best option, although it carries a higher monthly cost. Rental periods can extend to fit your circumstances. Terms can include free maintenance and repair if required. At the agreement’s end, return the equipment to MME through JEM. Renting is great for trying out various makes and models before deciding what to purchase or for ongoing access to the latest technology.
